Diamond brand coiled barbed wire barbed wire roll fence

  Diamond brand  coiled barbed wire barbed wire roll fence

Barbed wire appears before razor wire which is used widely as defense product. It costs few, easily installated. It is used in defending of farm land, sport ground, or used together with concertina razor wire. It is normally settled above the fence (chain link fence, welded fence and etc.), avoiding climbing across. It can also form a barbed wire wall by easily settled by wooden sticks or iron sticks(showed as below pictures).

Barbed wire technical data:

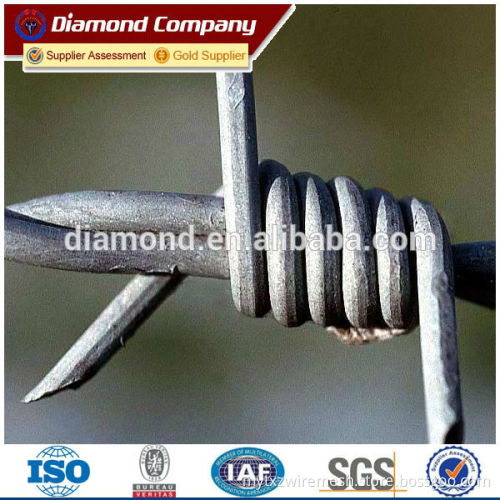

The picture of barbed wire:

Barbed wire is roped by the barbed wire and main wire.

It can be divided into two types by install method: beeline barbed wire and concertina barbed wire.

Two types divided by surface dispose: Galvanized barbed wire and PVC coated barbed wire.

1. Galvanized barbed wire

material: hot dipped galvanized wire (hot-dipped soft steel wire), electro galvanized wire. (electro-galvanized soft steel wire)

 2. PVC coated barbed wire

barbed wire Coated Color: green, blue,black, grey, brown and etc..

Strength tension: 450-500 N/mm2
Packing: 25kgs/coil, 50kgs/coil, then tied by iron wire.

The package can be also according to you demand.

3. Concertina Barbed Wire
Concertina Barbed Wire, Heavy Galvanized

Each roll of Concertina Barbed Wire consists by single high tensile line wire which is spirally coiled. Barbs are fixed at regular intervals. The turns of the concertina are inter-connected at regular distances around the circumference by means of clips, to form diamond meshes upon extension. When the concertina extended to its full length unfurls easily and provides a cylinder-like barrier.

Concertina Barbed Wire provides instant reliable and economical security for vital installations.

It can be set up quickly and easily on top of existing fences and solid walls, in ditches on roof of tops or by itself on the ground.

Single high tensile steel line wire :
Diameter :3.0+/-0.05mm
Tensile strength :1235N/m2
Low Carbon Steel Barbing Wire:
Diameter: 2.0mm+/-0.05mm
Tensile Strength :350N/m2
Length of barbs:13-20mm
Distance between Barbs:60mm+/-16mm
Galvanization :
Line Wire:275g/m2
Barbing Wire:240g/m2

Certification

About Diamond

Diamond Wire Netting&Finished Products Company cover a area of 20000 square meters ,has five workshops such as wire basket, chain link mesh,Razor wire,Fence post and Barbecue mesh.
