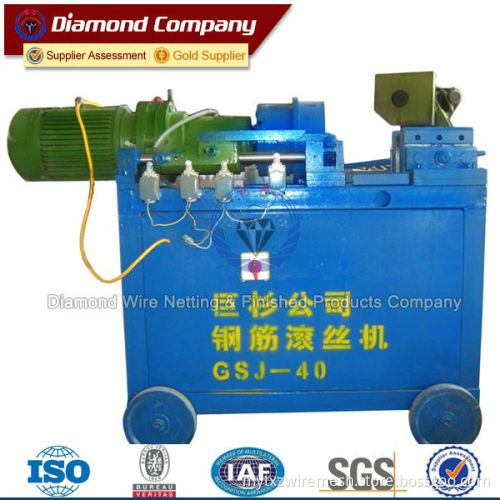

High Speed steel bar straight Rebar thread Rolling Machine
Characteristics:
DL-40 Steel Bar Straight Screw thread Screw Rolling Machine can finish rib-stripping ,screw thread rolling at the same time with the perfect tooth shape and precise size .
It can machining both deasil and anticlockwise screw thread,and can machining the strip steel bar of 14-40mm HRB335 and HRB400.
This machine is easy to operation ,with reasonable structure ,safe and reliable ,with special automatic knife which can on and off automaticically.
Structure :
DL-40 Steel Bar Straight Screw thread Screw Rolling Machine,which is composing of shelf,tightening tongs, transport orbit,slip board , gear-down machine ,( 54760959,rib-stripping) rolling tip,supplying equipment ,auotmatic opening and close equipment ,,travelling orientation equipment ,cooling system ,the wiring controlling equipment ,etc.
Technical parameters
Model |
GSJ-40-90 |
|
Rebar thread rolling machine head model |
40model |
|
Rolling wheel model |
HA25-1 |
HA30-1 |
Pitch |
2.5 |
3.0 |
Specification of rebar |
16 18 20 22 |
25 28 32 |
Weight |
315kg |
|
Motor power |
4KW |
|
Water pump motor power |
10W |
|
Voltage |
380V 50Hz |
|
Size |
1150X640X1090mm |
|
