SMAH300-ST Mining Slurry Pump

SMAH300-ST Mining Slurry Pump

Product Profile

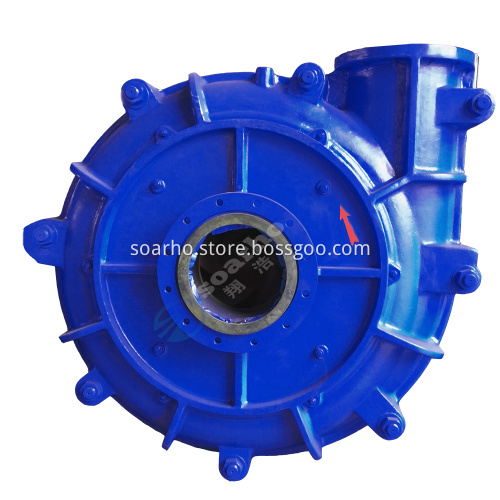

SMAH300-ST mining slurry pump is a large slurry pump with an outlet diameter of 12 inches. The components of which is built from high-chromium alloy, so make it ideal for transporting abrasive and/or corrosive slurries; high density slurries and large particle sizes. This severe duty slurry pumps has high interchangeability with Warman AH pump, which can withstand the extreme wear from coarse, heavy solids and flow turbulence, performing under even the most aggressive workloads. The strength of this metal mine slurry pump lies in the superiority of our advanced hydraulic designs and our high performing wear and corrosion resistant materials.

Model Meaning:

For example: SMAH(R) 25-B (AH: Metal AH Series Heavy Duty Slurry Pump; AHR: Rubber AH Series Heavy Duty Slurry Pump; 25: Discharge Diameter (mm); B: Frame Type.)

Performance parameter:

   Flow:   Q=1260~2772 m³/h

   Head:   H=13-63 m

   Speed:  n=300-600 r/min

   Weight: 6409 kg

   Allowable Mating Maximum Power: 560 KW

Construction Description

1 Suction Seal  2 Cover Plate  3 Front Liner  4 Liner  5 Discharge Seal  6 Stuffing Box 7 Packing Gland  8 Bearing Assembly  9 Shaft Sleeve 10  Packing  11 Front Lantern Ring  12 Rear Liner  13 Impeller  14 Frame plate

Product Feature

1. Optional special materials available on request: Abrasion resistant high chromium alloy A05, Abrasion resistant high chromium alloy A49, Natural rubber.

2. Smooth flow channel, good anti-blocking performance, excellent cavitation performance.

3. High capacity bearing design.

4. The discharge position by request may be rotated 8 different angles at intervals of 45 degrees.

5. Application at best efficiency point and selection of wear-resistant material give long life.

6. Within the allowable pressure range, the pump can be used in multiple stages series connection with allows maximum working pressure for 3.6Mpa.

7. Various shaft seal options including gland seal, expeller drive seal and mechanical seal.

Competitive Advantage

1. Has many successful projects.

2. Skilled team to provide you professional technical support and consummate after-sale service.

3. Mature technology, professional manufacture directly.

4. Factory price, top quality.

(1)  Expeller Seal Structrue

1 Packing

2 Metal Release Gland

3 Oil Cup

4 Packing Gland

5 Lantern Ring

6 Packing Gasket

7 Expeller

(2)   Mechanical Seal Structure

1 Mechanical Seal Box

2 Stationary Ring Assembly

3 Movable Ring Assembly

Variable Speed Centrifugal Slurry Pump Curves
