150-125 Ih Centrifugal Chemical Process Pump
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Tianjin In China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shijiazhuang |
|---|---|
| Productivity: | 30 sets per month |
| Supply Ability: | 30 Set/Month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | Tianjin In China |

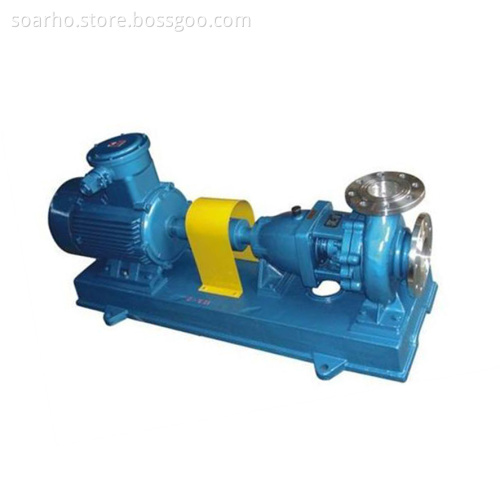

150-125 IH Chemical Centrifugal Pump
• Product Introduction
IH150-125 series pump is one of IH series Chemical process pump. It is a single suction and single stage cantilever centrifugal one for chemical industry use. The pump is usually a stainless chemical pump. It has different impeller to meet different performance. The range of the impeller is 250mm to 400mm. This series chemical pump product with high efficiency, good cavitation performance and the medium temperature is 20 ℃ ~ 105 ℃, to the cooling measures can deliver higher temperature of the medium, suitable for chemical, petroleum, metallurgical industry, electric power, paper making, foodstuff, pharmaceuticals and compound fabric industry etc, often used as chemical process pump ,anticrrosive pump (acid pump or alkaline pump) for transporting all kinds of corrosive or similar to the medium of water pollution is not permitted.
• Product Feature
The pump consist of pump casing, impeller, sealing ring, pump cover, shaft and bearing house etc. The pump adopts a structure of rear-door, for facilitating maintenance without dismantling pipe system of inlet and outlet. Much convenience in application.
The impeller nuts adopt steel spacer for preventing loose, which can effectively prevent loose and misplace of the impeller nuts due to the vibration in the operation and reverse rotation.
The material of parts which contact with liquid are made by 1Cr18Ni9,1Cr18Ni9Ti,1Cr18Ni12Mo2Ti,304,304L,316,316L,904,alloy 20#,dual-phase steel,hastelloy alloy etc. we can also adopt the other corrosion-resistance materials according to user' s requirement.
1 Impeller 2 Pump casing 3 Pump cover 4 Intermediate support 5 Bearing house
6 Bearing tail gland 7 Coupling 8 Protective cover 9 Motor 10 Impeller nut
11 Gland 12 Screwed plug 13 Foundation 14 Gland 15 Shaft sleeve
16 Gland 17 Mechanical seal 18 Gland 19 Mechanical seal gland 20 Shaft
21 Oil leveler 22 Suspension bracket 23 Air relief cock 24 Oil seal 25 Bearing
26 Paper washer
• Performance List
|
Pump type |
Capacity Q(m3/h) |
Head H(m) |
Speed N(rpm) |
Power P(kw) |
Efficiency ƞ(%)
|
NPSHr (m) |
Imp. dia. (mm) |
Pump Weight (kg) |
|
|
Shaft power |
Motor power |
||||||||
|
|
|
||||||||
|
IH150-125-250 |
120 |
24.8 |
1450 |
12.29 |
18.5 |
66 |
2.5 |
ɸ271 |
170 |
|
200 |
20 |
14.16 |
77 |
2.8 |
|||||
|
240 |
15 |
14.43 |
68 |
3.5 |
|||||
|
IH150-125-250A |
109.1 |
20.5 |
1450 |
9.75 |
15 |
62.5 |
2.5 |
ɸ260 |
170 |
|
182 |
16.5 |
10.91 |
75 |
2.8 |
|||||
|
218.2 |
12.4 |
11.31 |
65.2 |
3.5 |
|||||
|
IH150-125-250B |
104 |
18.9 |
1450 |
8.63 |
15 |
62 |
2.5 |
ɸ240 |
170 |
|
173 |
15 |
9.70 |
73 |
2.8 |
|||||
|
210 |
11.9 |
10.6 |
64 |
3.5 |
|||||
|
IH 150-125-315 |
120 |
36.3 |
1450 |
18.84 |
30 |
63 |
2.5 |
ɸ320 |
213 |
|
200 |
32 |
23.25 |
75 |
2.8 |
|||||
|
240 |
28.5 |
25.89 |
72 |
3.8 |
|||||
|
IH150-125-315A |
112 |
31.8 |
1450 |
15.9 |
30 |
61 |
2.5 |
ɸ300 |
213 |
|
187 |
28 |
19.5 |
73 |
2.8 |
|||||
|
225 |
25 |
21.4 |
71 |
3.8 |
|||||
|
IH150-125-315B |
104 |
26.7 |
1450 |
12.8 |
30 |
59 |
2.5 |
ɸ277 |
213 |
|
173 |
24 |
15.9 |
71 |
2.8 |
|||||
|
210 |
21.5 |
17.7 |
69 |
3.8 |
|||||
|
IH 150-125-400 |
120 |
57.5 |
1450 |
30.82 |
55 |
61 |
2 |
ɸ420 |
255 |
|
200 |
50 |
38.93 |
70 |
2.5 |
|||||
|
240 |
44 |
45.68 |
63 |
3 |
|||||
|
IH150-125-400A |
112 |
49.7 |
1450 |
25.3 |
45 |
60 |
2 |
ɸ394 |
255 |
|
187 |
44 |
32.9 |
68 |
2.5 |
|||||
|
225 |
39 |
39.2 |
61 |
3 |
|||||
|
IH150-125-400B |
104 |
44.8 |
1450 |
21.9 |
37 |
58 |
2 |
ɸ370 |
255 |
|
173 |
38 |
27.1 |
66 |
2.5 |
|||||
|
210 |
34 |
32.9 |
59 |
3 |
|||||
