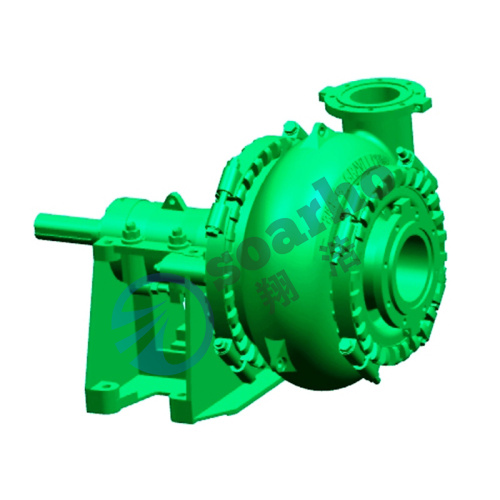

8/6E-G Centrifugal Gravel Pump

8/6E-G Centrifugal Gravel Pump

•      Product Introduction

    8/6E-G gravel pump is 6inches centrifugal slurry pump.This sand slurry pump is suitable for continuously delivery of mediums with strong abrasion the particle of which is too large for common slurry pump to transfer. These G series sand pumping pumps are mainly applied to dredger, river training, mining and delivery of metal smelting slag etc. and it is particularly suitable as shield machine pump.

    8/6E-G gravel sand pump is cantilevered centrifugal single casing pump connected with cassette, it is characterized by excellent abrasion resistance, corrosion resistance, high reliability, reasonable structure, reliable operation and long service life etc.

 •     Product Feature

1. Single casing structure connected with cassette, wide passage, hard alloy liner with excellent wear resistance, corrosion

    resistance, good reliability and good cavitation performance.

2. The bearing assembly is cylinder type structure , the bearing could be lubricated by grease or oil to fit different site condition.

3. The clearance between the impeller and the cover plate could be adjusted to ensure the pump to operate at high efficiency

     point.

4. Packing seal, expeller seal and cartridge mechanical seal could be selected as shaft seal to fit different site condition.

5. Pump and drive machine can choose direct drive, v-belt drive, hydraulic coupling drive, reducer drive.

6. The discharge direction could be positioned at any angle to fit different site installation condition.

•      Range of Performance

Capacity     Q:136-576m³/h

Head        H:10-48m

Discharge diameter: 150mm

  •      Outline Drawing
