12/10G-G Centrifugal Gravel Pump

12/10G-G Centrifugal Gravel Pump

•      Product Introduction

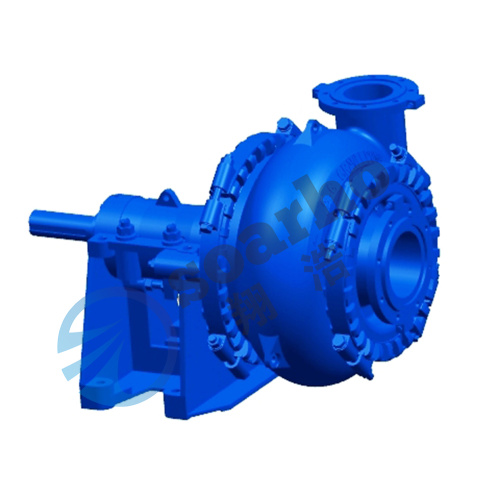

        12/10G-G gravel sand pump is single casing pump.Its outlet size is 10inches .The single shell connected with cassette,so that the discharge direction could be positioned at any angle to fit different site installation condition.It is characterized by excellent abrasion resistance, corrosion resistance, high reliability, reasonable structure, reliable operation and long service life etc.This G series sand slurry pump is suitable for continuously delivery of mediums with strong abrasion the particle of which is too large for common slurry pump to transfer. It is mainly applied to dredger, river training, mining and delivery of metal smelting slag etc. such as mineral processing pump,sand dredger pump and shield machine pump.

    •     Product Feature

1. Single casing structure connected with cassette, wide passage, hard alloy liner with excellent wear resistance, corrosion resistance, good reliability and good cavitation performance.

2. The bearing assembly is cylinder type structure , the bearing could be lubricated by grease or oil to fit different site condition.

3. The clearance between the impeller and the cover plate could be adjusted to ensure the      pump to operate at high efficiency point.

4. Packing seal, expeller seal and cartridge mechanical seal could be selected as shaft seal to fit different site condition.

5. Pump and drive machine can choose direct drive, v-belt drive, hydraulic coupling drive, reducer drive.

6. The discharge direction could be positioned at any angle to fit different site installation condition.

 1    Suction seal

 2    Suction split flange

 3    Front liner

 4    Impeller

 5    Frame plate

 6    Discharge seal

 7    Discharge split flange

 8    Rear liner

 9    Packing gland

10   Shaft sleeve

11   Bearing assembly

12   Packing

13    Front water seal ring

14    Packing box

15    Join plate

16    Cassette

17    Cover plate

 •      Range of Performance

Capacity     Q:360-1512m³/h

Head        H:11-58m

Discharge diameter: 250mm

 •      Outline Drawing
