SMSPR100-RV Rubber Sump Pump

SMSPR100-RV Rubber Sump Pump

•Product Introduction

Our SMSPR100-RV rubber sump pump impeller and the casing are lined with high wear-resistant natural rubber ensuring that the pump body is not subject to wear.Natural rubber is the most commonly used material in abrasive pumping services where maximum particle size is below 40mm and where organic compounds that attack rubber are not present.This type SPR sump slurry pump has high interchangeability with Warman slurry pump. This vertical centrifugal slurry pump lined with rubber is widely applied to sewage treatment, metallurgy, mining, coal, power plant, building materials industries and so on.

•Type Notation:

 For example: SMSP(SPR)150-SV(L) (SP: SP series Sump Pump; SPR: Rubber Lined Sump Pump;150: Discharge Diameter (mm); SV: Frame Type; L: Extension Type.)

•Product Feature

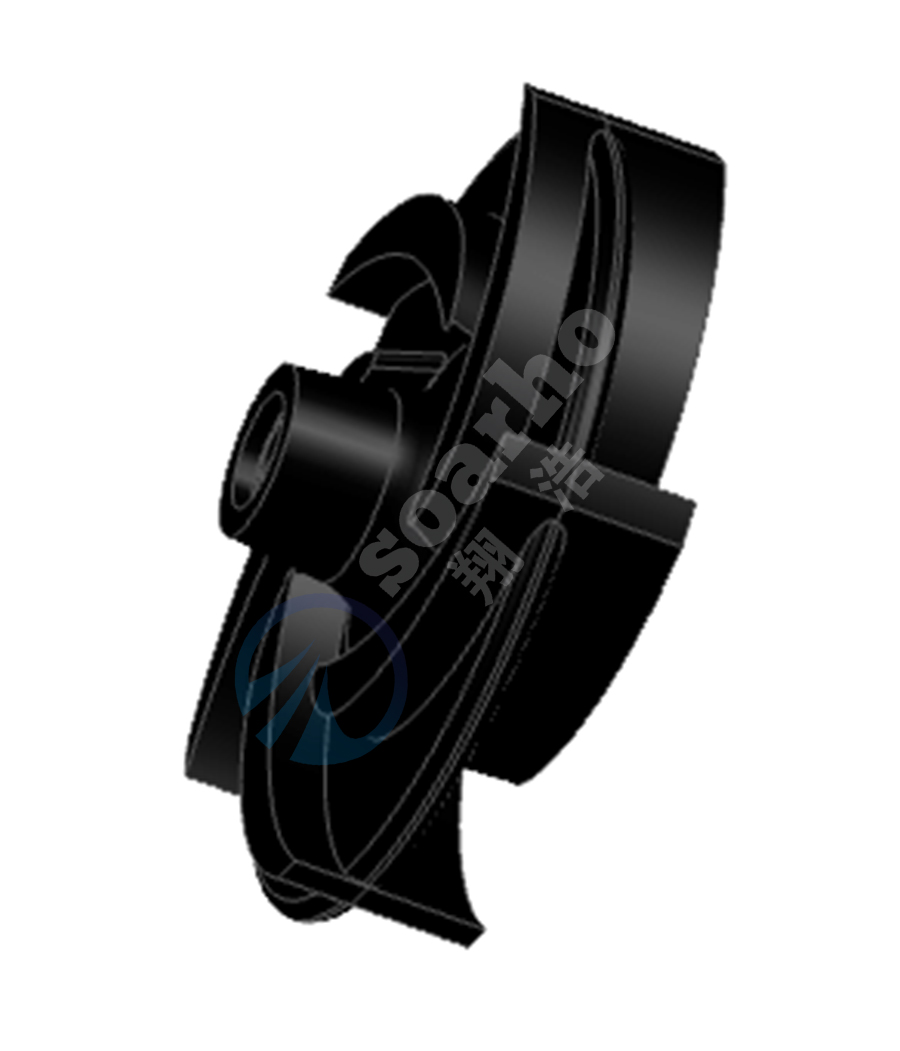

1. The long shaft sump slurry pump`s impeller is open structure, built from natural rubber.

2. Heavy duty roller bearings, above mounting plate.

3. Vertical, centrifugal and single-casing structure.

4. No submerged bearings.

5. No shaft sealing problems.

6. Direct drive, V-belt drive, variable frequency drive for pump could be selected to connect with the driver.

• Range of Performance

Capacity     64.8~285m3/h

Head        7.5~36m

Discharge diameter: 100mm

• Drive Type

 • Type Of Pump Inlet Construction

• Performance Curves

• Outline Drawing
