350 X-TL(R) FGD Pump

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Tianjin In China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shijiazhuang
Supply Ability:	20 Set/Month
Payment Type:	L/C,T/T
Incoterm:	FOB
Transportation:	Ocean
Port:	Tianjin In China

Product Description

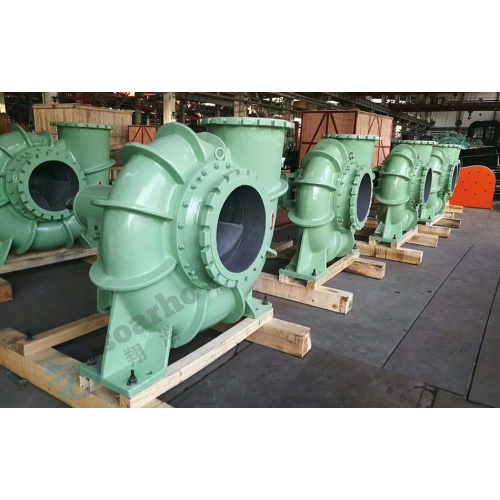

350X-TL(R) Series FGD Pump

• Product Introduction

350X-TL(R) is 350mm horizontal centrifugal slurry pump.It is mainly used in desulfurization process.The pump is cantilevered and double casing pump. The lining adopts replaceable hard alloy or rubber, which has good wear resistance, corrosion resistance and high reliability. This TL(R) series desulfurization pump is equipped with compact X shaped bracket for significantly saving space.It is characterized by wide flow range, high efficiency.
350X-TL(R) desulfurization pump is mainly used in hydro FGD system as absorber circulating slurry pump.

• Product Feature

The pump housing is made of replaceable hard alloy liner or rubber liner with double pump housing structure, which has good wear resistance, corrosion resistance and high reliability.
The structure of the pump is back disassembling type for easily maintenance, it is not necessary to dismantle the inlet or outlet pipeline when maintenance is needed.
The impeller are made from a new type of anti-abrasion and anti-corrosion material specially for FGD process, this type of material has advantages of anti-corrosion as duplex stainless steel and anti-abrasion of high chrome alloy.
Double-row tapered roller bearing is adopted at the pump end, cylindrical roller bearing is adopted at the drive end, and the bearings are lubricated by oil so that the condition the bearings works under is improved and the service life of the bearings is lengthened.
Cartridge mechanical seal which is specially adopted in desulfurization process is used to make its operation much stable.

Horizontal FGD Pump

NO.	Name	Material	NO.	Name	Material
1	Suction cover	A49	9	Impeller release collar	Stainless steel
2	Cover plate liner	Natural rubber+A3	10	Shaft sleeve	316
3	Impeller	A49	11	Double-row tapered roller bearing
4	Frame plate liner	Natural rubber+A3	12	Bearing house	QT500-7
5	Frame plate	QT500-7	13	cylindrical roller bearing
6	Rear liner	Natural rubber+A3	14	Shaft	45
7	Adaptor plate	QT500-7	15	Bracket	QT500-7
8	Mechanical seal	Hard alloy	16	Cover plate	QT500-7

Circling Pump in Desulfurization Process

NO.	Name	Material	NO.	Name	Material
1	Suction cover	QT500-7+Natural rubber	9	Impeller release collar	Stainless steel
2	Throat bushing	A49	10	Shaft sleeve	316
3	Impeller	A49	11	Double-row tapered roller bearing
4	Volute liner	A49	12	Bearing house	QT500-7
5	Frame plate	QT500-7	13	cylindrical roller bearing
6	Rear liner	A49	14	Shaft	45
7	Adaptor plate	QT500-7	15	Bracket	QT500-7
8	Mechanical seal	Hard alloy	16	Cover plate	QT500-7
