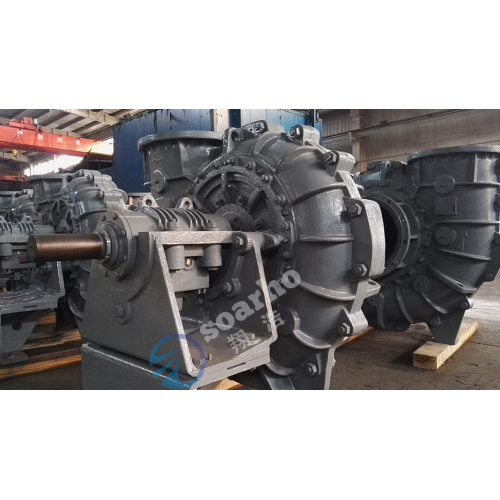

700X-TL(R) Series FGD Pump
• Product Introduction
700X-TL(R) is 700mm size slurry pump.The pump is a single stage,single suction horizontal centrifugal slurry pump.It is mainly used in desulfurization process.The pump is
cantilevered and double casing pump. The
lining adopts replaceable hard alloy or rubber, which has good wear resistance,
corrosion resistance and high reliability. This TL(R) series desulfurization pump is equipped with
compact X shaped bracket for significantly saving space.It is characterized by
wide flow range, high efficiency.
700X-TL(R) desulfurization pump is mainly used in hydro FGD system as absorber slurry circulating pump.
• Product Feature
- The wet wear parts are made of replaceable hard alloy liner or rubber liner with double pump housing structure, which has good wear resistance, corrosion resistance and high reliability.
- The structure of the pump is back disassembling type for easily maintenance, it is not necessary to dismantle the inlet or outlet pipeline when maintenance is needed.
- The impeller are made from a new type of anti-abrasion and anti-corrosion material specially for FGD process, this type of material has advantages of anti-corrosion as duplex stainless steel and anti-abrasion of high chrome alloy.
- Double-row tapered roller bearing is adopted at the pump end, cylindrical roller bearing is adopted at the drive end, and the bearings are lubricated by oil so that the condition the bearings works under is improved and the service life of the bearings is lengthened.
- Cartridge mechanical seal which is specially adopted in desulfurization process is used to make its operation much stable.
Structure 1
|
NO. |
Name |
Material |
|
NO. |
Name |
Material |
|
1 |
Suction cover |
A49 |
9 |
Impeller release collar |
Stainless steel |
|
|
2 |
Cover plate liner |
Natural rubber+A3 |
10 |
Shaft sleeve |
316 |
|
|
3 |
Impeller |
A49 |
11 |
Double-row tapered roller bearing |
|
|
|
4 |
Frame plate liner |
Natural rubber+A3 |
12 |
Bearing house |
QT500-7 |
|
|
5 |
Frame plate |
QT500-7 |
13 |
cylindrical roller bearing |
|
|
|
6 |
Rear liner |
Natural rubber+A3 |
14 |
Shaft |
45 |
|
|
7 |
Adaptor plate |
QT500-7 |
15 |
Bracket |
QT500-7 |
|
|
8 |
Mechanical seal |
Hard alloy |
16 |
Cover plate |
QT500-7 |
Structure 2
|
NO. |
Name |
Material |
|
NO. |
Name |
Material |
|
1 |
Suction cover |
QT500-7+Natural rubber |
9 |
Impeller release collar |
Stainless steel |
|
|
2 |
Throat bushing |
A49 |
10 |
Shaft sleeve |
316 |
|
|
3 |
Impeller |
A49 |
11 |
Double-row tapered roller bearing |
|
|
|
4 |
Volute liner |
A49 |
12 |
Bearing house |
QT500-7 |
|
|
5 |
Frame plate |
QT500-7 |
13 |
cylindrical roller bearing |
|
|
|
6 |
Rear liner |
A49 |
14 |
Shaft |
45 |
|
|
7 |
Adaptor plate |
QT500-7 |
15 |
Bracket |
QT500-7 |
|
|
8 |
Mechanical seal |
Hard alloy |
16 |
Cover plate |
QT500-7 |
Note:A49 material is a kind of Duplex phase anti-abrasive and anti-corrosive alloy, it widely used for FGD projects in the word.
• Range of Performance
Capacity Q:6840m3/h
Head H:26m
Discharge diameter: 700mm
• Outline Drawing
