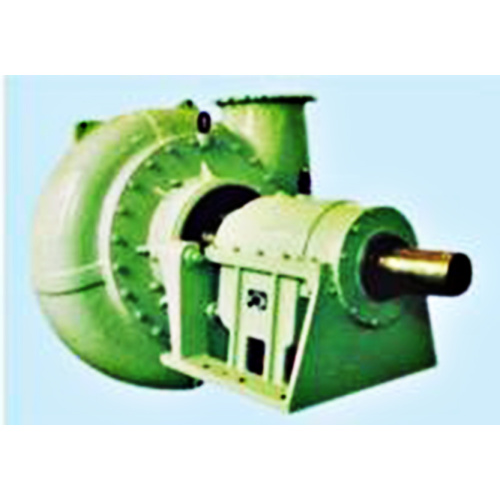

300 WND Dredging Pump

300WND Dredging Pump

•      Product Introduction

    300WND dredging pump is cantilever single shell horizonal slurry pump.Compared with 300WN, 300WND has lower head and lighter weight.This  pump is simple and reliable in structure, easy to disassemble and maintain, and adopts high chrome cast iron parts,which has a long trouble-free life. The pump is marine dredging pump for dredging of river and sea. The flow passage of the impeller is wide through the capacity, so it is difficult to block for pumping sand gravel or high plastic clay. These WN series dredge slurry pumps have super strong excavation and suction ability.

300WND is suitable for dredging and filling operations of cutter-suction dredger and trailing suction dredger. It is also used as river sand dredge pump and mine slurry pump in vessels.

 •     Product Feature

1.The structure is simple and reliable.

       The pump adopts single pump casing structure. According to the connecting way of gear box can provide two kinds of typical structures, one is connected with own bearing bracket, the other is combined with reduction gear box. The lubrication of pump with bearing bracket is grease lubrication or thin oil lubrication.

  2. Easy to assemble and disassemble and easy to maintain. The front dismantling structure is adopted, and special disassembly tools are equipped to facilitate disassembly and assembly.

   3.The performance of dredging is excellent. The flow and head curve of the pump are steep, the suction ability is strong, the ability of passing the pump is good, the change of the distance is more applicable, and the depth of digging and the higher transportation concentration can be reached.

   4.Good wear resistance and long life of flow parts. The impeller, volute liner, throat bushing and rear plate liner (wearable liner) are made of strong wear resistant alloy cast iron whose hardness is not less than 58HRC.It has not only impact on resistance but also high anti-abrasion performance.

   5.Using advanced hydraulic model, the pump has low hydraulic loss, high efficiency and low energy consumption. The service life of each part is full considered in the process of product design. The same replacement cycle reduce the maintenance and replacement costs.

   6.The shaft seal is reliable and no leakage.

        The pump adopts mechanical seals or packing seals or combination of mechanical and packing seals.

                                         300WND  combined with gear box structure

6  Frame plate            7  Cover plate                       8  Throat bushing             9  Impeller                10  Supporting plate

                                 300WND Pump with own bearing bracket structure

1  Shaft                 2  Support           3  Impeller release collar         4  Seal assembly         5  Adaptor plate          6  Rear plate liner

7  Frame plate        8  Cover plate      9  Throat bushing                 10  Impeller               11  Supporting plate

   •      Range of Performance

Capacity     Q:1500-1800m³/h

Head          H:20-40m

Discharge diameter: 300mm
