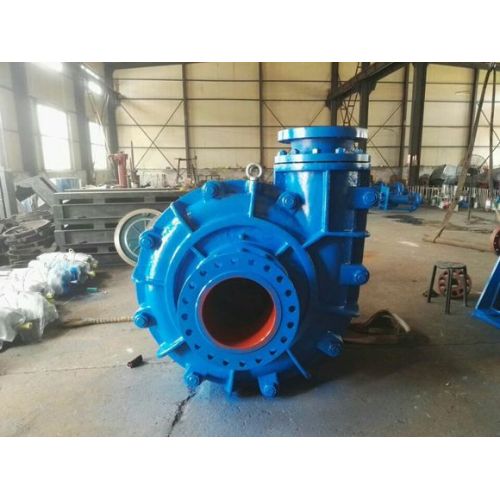

250ZGB High Head Slurry Pump
250ZGB pump is one of Zgb(p) Series High Efficiency Slurry Pump. ZGB(P) series slurry pumps are horizontal, vertical axial middle open type and double casing structure, lined with wear-resistant metal. As A High Pressure Slurry Pump and High-efficiency Slurry Pump, the Impeller is designed with high efficiency, high head design, and the flow passage is wide, non-clogging. The series of pump has the advantages of reasonable construction, high-efficiency, reliable operation and easy maintenance. In the meantime , the series of pump have the characteristics of flow and high head, and can be multi-stage series. It widely used for handling mixtures containing abrasive and corrosive solids in electric power, metallurgy, mine, coal, constructional material and chemical industry departments.Especially, perform well as Tailing Thickener Slurry Pumps ,Flotation Machine Feeding Pump.
Product Feature
2. Expeller seal combined with packing seal or mechanical seal adopted to different working conditions.
3. The bearing assembly is a horizontal, medium-open structure. The metric bearing is oil lubrication and is equipped with two sets of bearing cooling system. If necessary, circulating cooling water can be added to ensure the bearing operates at low temperature.
4. Special materials adopted to wet parts, good performance in anti-wearing and anticorrosion.
5. The clearance between the impeller and the cover plate could be adjusted to ensure the pump to operate at high efficiency point.
6. The discharge branch can be positioned at intervals of 45 degree by request and oriented to any eight positions to suit installation and application.
7. The pump can be operated in series with multi-stage within permissible pressure. The permissible maximum working pressure is 3.6MPa.
250ZGB performence parameters
|
Type |
Speed (r/min) |
Capacity |
Head (m) |
Eff. (%) |
NPSHr (m) |
Power on shaft (KW) |
Power on motor (KW) |
Impeller Dia. (mm) |
Discharge Dia. /Suction Dia. (mm) |
Pump weight (kg) |
|
|
(l/s) |
(m3/h) |
||||||||||
|
250ZGB(P) |
980 |
400.0 |
1440.0 |
84.0 |
78.2 |
7.3 |
421.2 |
630 |
740 |
250/300 |
4500 |
|
333.3 |
1199.9 |
88.0 |
77.0 |
5.7 |
373.4 |
560 |
|||||
|
200.0 |
720.0 |
90.1 |
64.1 |
3.3 |
275.6 |
450 |
|||||
|
740 |
302.0 |
1087.2 |
47.9 |
78.2 |
4.2 |
181.4 |
280 |
||||
|
251.7 |
906.1 |
50.2 |
77.0 |
3.3 |
160.9 |
250 |
|||||
|
151.0 |
543.6 |
51.4 |
64.1 |
1.9 |
118.7 |
185 |
|||||
|
980 |
378.4 |
1362.2 |
75.2 |
78.2 |
7.1 |
356.7 |
560 |
700 |
|||
|
315.3 |
1135.1 |
78.7 |
77.0 |
5.1 |
315.9 |
500 |
|||||
|
189.2 |
681.1 |
80.6 |
64.1 |
3.0 |
233.2 |
355 |
|||||
|
740 |
285.7 |
1028.5 |
42.9 |
78.2 |
4.0 |
153.7 |
250 |
||||
|
238.1 |
857.2 |
44.9 |
77.0 |
2.9 |
136.1 |
220 |
|||||
|
142.9 |
514.4 |
46.0 |
64.1 |
1.7 |
100.5 |
160 |
|||||
|
980 |
348.6 |
1255.0 |
63.8 |
78.2 |
5.5. |
278.8 |
450 |
645 |
|||
|
290.5 |
1045.8 |
66.9 |
77.0 |
4.3 |
247.4 |
400 |
|||||
|
131.6 |
473.8 |
68.5 |
64.1 |
2.5 |
137.9 |
220 |
|||||
|
740 |
263.2 |
947.5 |
36.4 |
78.2 |
3.1 |
120.1 |
185 |
||||
|
219.4 |
789.8 |
38.1 |
77.0 |
2.5 |
106.4 |
185 |
|||||
|
99.4 |
357.8 |
39.1 |
64.1 |
1.4 |
59.4 |
110 |
|||||
Outline drawing:
