200ZGB Centrifugal Mine Slurry Pump
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Tianjin in China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shijiazhuang |
|---|---|
| Supply Ability: | 20/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | Tianjin in China |

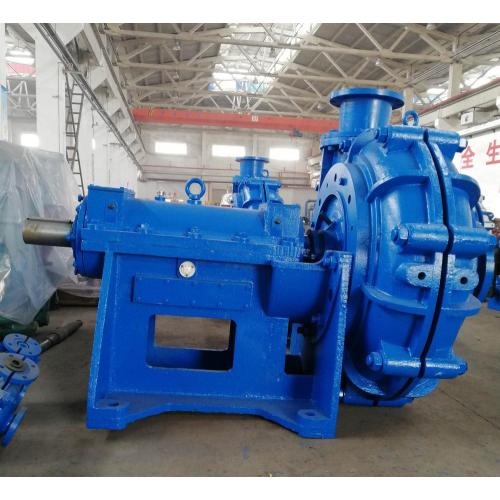

200ZGB High Head Slurry Pump
200ZGB(P) is one of ZGB(P)series slurry pumps and is horizontal, vertical axial middle open type and double casing structure, lined with wear-resistant metal. The pump has the advantages of reasonable construction, high-efficiency, reliable operation and easy maintenance.As a High Head Slurry Pump and High-efficiency Slurry Pump,its Impeller is designed with high efficiency, high head design, and the flow passage is wide, non-clogging. The series of pump have the characteristics of flow and high head, and can be multi-stage series. It widely used for handling mixtures containing abrasive and corrosive solids in electric power, metallurgy, mine, coal, constructional material and chemical industry departments.
Product Feature
2. Expeller seal combined with packing seal or mechanical seal adopted to different working conditions.
3. The bearing assembly is a horizontal, medium-open structure. The metric bearing is oil lubrication and is equipped with two sets of bearing cooling system. If necessary, circulating cooling water can be added to ensure the bearing operates at low temperature.
4. Special materials adopted to wet parts, good performance in anti-wearing and anticorrosion.
5. The clearance between the impeller and the cover plate could be adjusted to ensure the pump to operate at high efficiency point.
6. The discharge branch can be positioned at intervals of 45 degree by request and oriented to any eight positions to suit installation and application.
7. The pump can be operated in series with multi-stage within permissible pressure. The permissible maximum working pressure is 3.6MPa.
200ZGB performence parameters
|
Type |
Speed (r/min) |
Capacity |
Head (m) |
Eff. (%) |
NPSHr (m) |
Power on shaft (KW) |
Power on motor (KW) |
Impeller Dia. (mm) |
Discharge Dia. /Suction Dia. (mm) |
Pump weight (kg) |
|
|
(l/s) |
(m3/h) |
||||||||||
|
200ZGB(P) |
980 |
300.0 |
1080.0 |
89.0 |
76.3 |
6.7 |
342.9 |
560 |
740 |
200/250 |
4000 |
|
250.0 |
900.0 |
93.4 |
73.7 |
5.6 |
310.5 |
560 |
|||||
|
150.0 |
540.0 |
94.2 |
63.2 |
2.7 |
219.1 |
355 |
|||||
|
740 |
226.5 |
815.4 |
50..7 |
76.3 |
3.8 |
147.5 |
220 |
||||
|
188.5 |
678.6 |
53.3 |
73.7 |
3.2 |
134.3 |
200 |
|||||
|
113.3 |
407.9 |
53.7 |
63.2 |
1.5 |
94.3 |
160 |
|||||
|
980 |
283.8 |
1021.7 |
79.6 |
76.3 |
6.0 |
290.2 |
450 |
700 |
|||
|
236.5 |
851.4 |
83.4 |
73.7 |
5.0 |
262.3 |
400 |
|||||
|
141.9 |
510.8 |
84.3 |
63.2 |
2.4 |
185.8 |
280 |
|||||
|
740 |
214.3 |
771.5 |
45.4 |
76.3 |
3.4 |
125.0 |
200 |
||||
|
178.6 |
643.0 |
47.6 |
73.7 |
2.9 |
113.0 |
185 |
|||||
|
107.1 |
385.6 |
48.1 |
63.2 |
1.4 |
80.0 |
132 |
|||||
|
980 |
259.5 |
934.2 |
66.6 |
76.3 |
5.0 |
222.0 |
355 |
640 |
|||
|
216.2 |
778.3 |
69.9 |
73.7 |
4.2 |
210.0 |
315 |
|||||
|
129.7 |
466.9 |
70.5 |
63.2 |
2.0 |
141.8 |
220 |
|||||
|
740 |
195.9 |
705.2 |
38.0 |
76.3 |
2.9 |
95.6 |
160 |
||||
|
134.9 |
485.6 |
39.9 |
73.7 |
2.4 |
71.6 |
110 |
|||||
|
97.9 |
352.4 |
40.2 |
63.2 |
1.1 |
61.0 |
110 |
|||||
Outline drawing:
