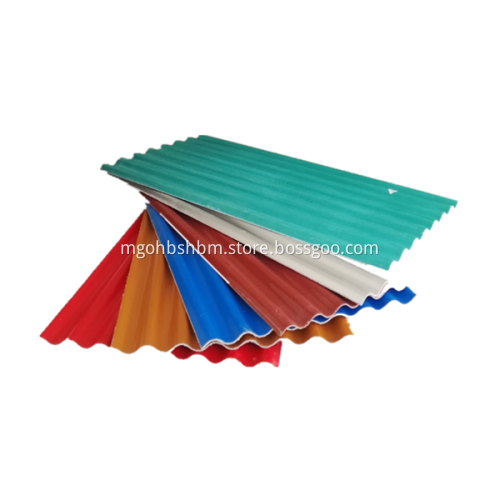

Environmental Friendly Sound Insulation Mgo Roofing Sheet

The Iron Crown" High strength fireproof anti-corrosion insulating Mgo roofing sheet could be processed by saw, nails, drilling, installed simply and quickly, save material cost and labor cost. And due to its excellent performance of corrosion-resistant, acid and alkali resistant, weather resistant, energy-saving, environmental-friendly, etc. Prolong the service life of the buildings, reduce the cost of labor and the replacement of the installation, make the integrated cost of application much lower. It is the best substitute of asbestos sheets, steel sheets, cement sheets and thatched roof.

   The harmless materials are the components of our Mgo roofing sheet, this product is a high strength, high density and fireproof roofing sheet. It can be used in a very wide field. We have our own factory to introduce these sheets, so the quality and the price can be guaranteed. We know that the quality is the life of a company, so we make much account of the quality of products, and at the same time we can give the best prices to our clients. That is the reason we have so many clients in the world.

     Iron Crown Mgo Fireproofing Board is a good decoration material for the residence, commercial center, meeting room, industrial building, exhibition center and railway station, etc. It can be made as partition wall, furniture wall, flooring panel, steel structure wall panel and wooden structure wall panel. It is beautiful and also has good quality, and at the same time it has a favorable price.

Specification

Length:1800mm 2000mm 2400mm 3000mm 5800mm

Width:960±5mm              720±5mm

Thickness:5.0±0.5mm     4.0±0.5mm

The roofing tiles can be made in different sizes according to customers`requirements.

Item	MGO roofing sheets
Horizontal breakage	>2600N/M
Vertical breakage	>360N/M
Water Absorption	<14%
Water resistant	No seepage-soaking for 96hours
Anti-combustion	No ignition combusting in 760+28 degrees flame for 30 minutes
Shock resistant	Donnot craze,peel off,penetrade on the surface after 1kg iron ball dropped 1.5m height

There are three series of Mgo Roofing Sheets:

PET MGO Roofing Sheets

Glazed MgO Roofing Sheets

Aluminum Foil Roofing Sheets

(1 )MGO Glazed roofing sheets

    Its mainly color is whitebeige, this kind of tiles usually be used as the simple buildings, This kind

    of roofing tiles could be used about more than 10 years. Its cost is low.

(2) PET combined MgO roofing sheets

   PET membrane is a kind of anti-aging film, this kind of tiles could be in different color

  according to your require.The performance of UV blocking, corrosion resistant and servicelife

  is longer. This kind tiles could be used more than 20 years.

(3) Aluminium Foilcombined MgO Roofing sheets

   The surface is Aluminiumfoil. Its performance of anti corrosion, UV blocking and Acid &alkali

   resistance is the best. The Aluminium foil MgO roofing tiles couldbe used more than 30 years.

Features and Performance Advantages

 --There are many features,such as high strength,fire-proof,heat-insulation,corrosion resistant,

acid&alkali resistant,anti-aging,shock resistant,long service.

--The MGO roofing sheets could be processed by saw,nails,drilling ,installed simply and quickly,save material cost and labor cost.

Performance comparison

Comparison item	Color steel	Cement sheets	"Iron crown" MGO roofing sheets
Acid&Alkali resistant	poor corrosion resistance	perishable	PH value between 2 and 12,the tiles will not be affected
Fire-proof	Coated with fireproof paint,when tempature upt to 800 ℃ ,the steel sheets began to melt	The common cement prducts refractory tempature is about 400 ℃	fire-retardant reached grade A1.No ignition combusting in 1000 ℃ flame.
Heat conductivity	46.52	According to the thickness	0.169
Strength	Easy bending,easy broken	Easy damaged,easy broen	High strength,good thoughness,No crack
Dimension keeping	Easy deformed	Easy deformed,easy broken,easy damaged	Never deformed
Service life	3 to 5years	About 5-8years	More than 15-30 yearsin different series products

Main advantages of MGO roofing sheet over colour steel sheet

(1) Energy conservation:

MGO roofing sheet has good heat insulation performance and can save energy consumption of the building.

The heat insulation performance is determined by the physical performance of the raw materials,

the heat conductivity is 0.169w/m.k. The MGO roofing heat insulation performance is improved due

to sunlight reflection off the aluminium foil.

	MGO Roofing Sheet	Cement Roofing Sheet	Colour Steel Sheet	Composite PVC Sheet
Heat Conductivity	0.169W/m.k	2.379W/m.k	46.53W/m.k	3.0W/m.k
The lower conductivity,the better heat insulation performance.MGO Roofing sheet is suitable for Summer,strong sun light and hot weather.

 (2) Fireproof  MGO roofing has excellent fire proofing performance. The colour sheet requires additional fire proofing rock

wool to improve its heat insulation and fire proof performance.

(3) Product life

The colour steel sheet normally needs to be maintained ,painted and anti-rust treated every three to four years and every 6 to 8 years must be replaced.MGO roofing life span is more than 20 to 30

years.the comprehensive application cost of MGO roofing is less than colour steel sheeting .

 (4) Acide and alkali resistance

MGO roofing can be used under strong acid and alkali conditions.Coulur steel sheet cannot bear acid and alkali. Especially high tempature,high corrosion, chemical plant,feeding-farm,it will be rechanged everything 2 or 3years.

 (5) Comprehensive application costs

The comprehensive application costs of MGO roofing is far less than corrugated steel sheet.

♥The product life can reach over 20 years. The material and labor cost of renovating,changing and maintaining

 the steel sheet roofing is more expensive than MGO roofing .

♥The excellent heat insulation performance of MGO roofing can save a lot of energy consumption cost than

steel roofing sheet building.The additional heat insulation layer of corrugated steel sheet also adds additional costs.

 Application and projects

     The mgo roofing sheet can be used as the workshop Roof Sheets, house Roof Sheets and applicate in the chemical plant, feeding farms, casting factory, work shop, warehouse, market shed, garage, roofing of residence, etc. It is the fireproof Mgo Roofing Tiles

And the mgo roofing sheets is a kind of Magnesium Oxide Roof. Its main content is the Magnesium Oxide, magnesium cl2, talcum powder and some fireproof material.

(1)Project Name: Tieying Pharmaceutical Workshop

 Area:250,000 Square Meters

Product: 3000×960×5mm  PE Membrane MgO Roofing Tiles

The High Strength Mgo Roofing Tiles has the function of acid and alkali resistant.

This workshop is in the coastal area of China, the MgO Roofing tiles is the perfect roofing material for it.

Unlike Iron sheets, its service life is more than 20 years.

(2)Project Name:Huishang Dairy Breeding Base

  Area:160,000 Square Meters

Product: 5800×960×5mm  PE Membrane MgO Roofing Tiles

The MgO Roofing sheet has the function of Heat Insulation and Sound Insulation,

creating a comfortable living condition for cows.

(3)Project:  Jinet Eco Furniture Factory

 Area:40,000 Square Meters

Product: 3000×960×5mm Aluminium Foil Glazed Tiles

Our MgO Tile can not only be used not only as roofing material, but also as walls.

The wall and roof of the following factory are all built with our MgO tiles.

Packing and shipping

(1)Loading

MGO roofing sheet is heavy cargo , Weight:10.5-11kg/meter ,

we suggest use 20ft container ,it can load 27 tons/20ft ,2350/m²

(2)Decoration

Decoration including ridges,nails ,plastic caps of nails

Production line and equipment

Exhibition&Business

 We attend Canton Fair every time.and other exhibition we will update in our website.

Hope to see you then
