Product Description

Quick Information

Brand Name:Zhonghui
Place of Origin:China

Description

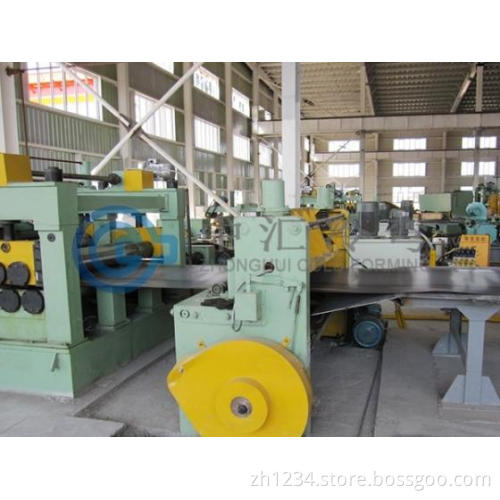

The slitting line is designed to shear hot & cold rolling steel coil of large width into sub-strips of desired width along the longitudinal direction then roll them into coils as the material of forming pipe and sectional steel and other profile.
The slitting line is used to match with cutting-into-length machine according to the different requirement of clients.

Main technical parameters:

Model	Material of strip steel: carbon steel of σb≤580Mpa, σs≤350MPa and low alloy steel of ≤X80			Cutting speed(m/min)
Model	Width of raw material(mm)	Thickness of strip steel(mm)	Width of finished product(mm)	Cutting speed(m/min)
ZJ600	120~600	0.5~2.0	40~580	10~80
ZJ800	120~800	0.7~3.5	40~750	10~80
ZJ1300	400~1300	0.8~4.5	60~1250	10~60
ZJ1600	600~1600	2.0~6.0	60~1550	10~60
ZJ1800	900~1800	3.0~8.0	90~1750	10~60
ZJ2000	1000~2000	6.0~16.0	90~1950	10~30
ZJ2200	1000~2200	8.0~20.0	90~2150	10~20
