Oil, Natural Gas Steel Pipe Production Line
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean
- Port:
- Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100/sets per month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | Tianjin |
Quick Information
- Brand Name:Zhonghui
- Place of Origin:China
Description

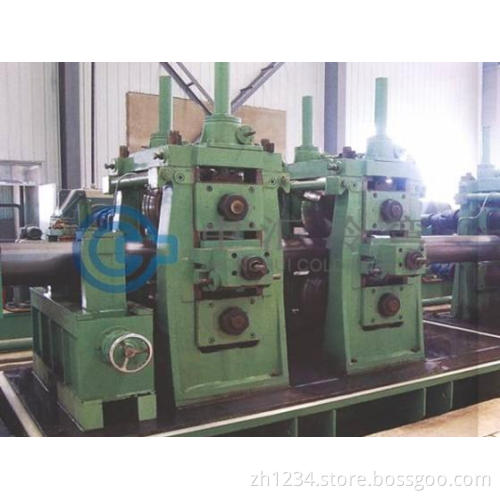

This line is designed to produce the oil and gas transmission pipe, petroleum driven pipe etc, conforming to standard of API-5L.API-5CT.ASTM A53 Grade A&B, also the boil and heat transfer pipes, high-pressure pipes etc.
We absorbed the international advanced technology of tube making, like FFX and cage forming flexible formation technology etc, which apply CAD system to deformation process of welding pipe, which analysis and research the distortion craft of high grade steel pipe, also coordinated with high-performance welding machine to solve better the forming and welding defects that provide the high grade & high value-added welded pipe products for users.
Value Highlights: Saving the rollers
Strong stands
Main technical parameters:
| Model | Material of strip steel: carbon steel of σb≤580Mpa, σs≤350MPa and low alloy steel of ≤X80 | Production speed(m/min) | |
| Diameter of welded pipe(mm) | Thickness of welded pipe(mm) | ||
| HG114 | Ø48~ Ø114 | 1.5~5.0 | 20~60 |
| HG140 | Ø48~ Ø140 | 1.5~5.0 | 20~60 |
| HG165 | Ø60~ Ø165 | 2.0~6.0 | 10~45 |
| HG219 | Ø89~ Ø219 | 3.0~8.0 | 10~35 |
| HG273 | Ø114~ Ø273 | 4.0~12.7 | 10~35 |
| HG325 | Ø165~ Ø325 | 4.0~12.7 | 10~35 |
| HG426 | Ø165~ Ø426 | 6.0~16.0 | 10~35 |
| HG508 | Ø219~ Ø508 | 6.0~16.0 | 10~35 |
| HG610 | Ø219~ Ø610 | 6.0~18.0 | 10~25 |
Price
- Delivery Port :Tianjin
Packaging & Delivery
- Packing :By carton box or Wooden box according to different
- Delivery Lead Time :3-7 working days according to different quantities
- Supply Ability :100/sets per month
