Inclined Clarifier PP PVC Tube Settler Media Modules

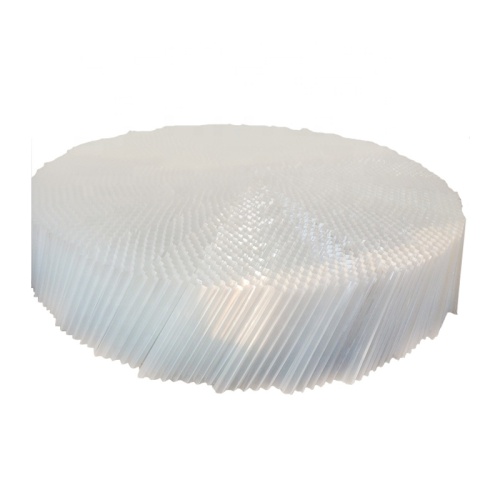

Tube settler description

Inclined tube settler produced by our company uses EPR copolymer plastic as the material,it was hot drawn into slope tube by a infrared thermal machine,and then using patented technology and high frequency to weld into a whole product,our staff will carry on-site installation for customer.

Inclined tube is mainly used for a variety of precipitation and sand removing.For a decade,it is a water treatment device that's widely used in the drainage works.It has the advantages of being suitable for a wide range,high treatment efficiency,small footprint.

Tube settler specification

The tube settler aperture is 25mm,35mm,50mm and 80mm,the thickness is from 0.4mm-0.8mm.

Tube settler features

1.Large wetted perimeter, small hydraulic radius

2.Good laminar flow conditions, particle deposition is out of turbulent flow interference

3.When the oblique tube length is 1 meter, the effective payload is designed to meet 3-5t/m2,Vo is controlled within 2.5-3.0mm/seconds,then it has the best water quality

4.After applied tube settler in water intake, if its length is 2.0-3.0meters, it can work effectively in high turbidity tank of 50-100kilogram/m3 sediment concentration

5.After applied tube settler in sedimentation tank, its water treatment capacity is 3-5 times of advection sedimentation tank and 2-3 times of the accelerating clarification tank and pulse clarification tank

Tube settler production

Tube settler packing and delivery

Contact
