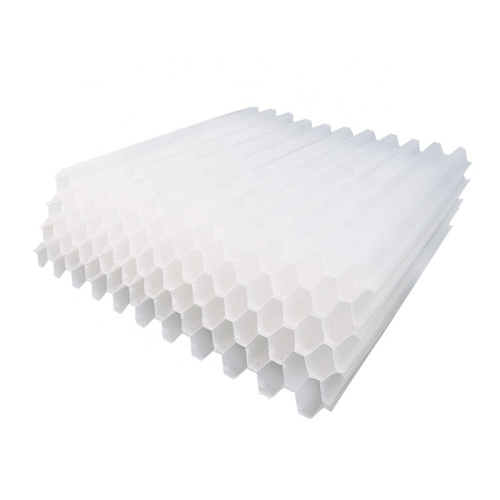

Honeycomb Inclined Tube Settler

Tube Settler Introductions

Tube settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area.
This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times.
Tube settlers capture the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form.
The tube settler's channel collects solids into a compact mass which promotes the solids to slide down the tube channel.

Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.

Tube Settler Specifications

Tube Settler Advantages

1. Clarifiers/basins equipped with tube settlers can operate at 2 to 4 times the normal rate of clarifiers/basins without tube settlers.
2. It is possible to cut coagulant dosage by up to half while maintaining a lower influent turbidity to the treatment plant filters.
3. Less filter backwashing equates to significant operating cost savings for both water and electricity.
4. New installations using tube settlers can be designed smaller because of increased flow capability.
5. Flow of existing water treatment plants can be increased through the addition of tube settlers.
6. Tube settlers increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks.

Tube Settler Can be Made into PP and PVC Material

PP material Tube Settler is food grade, it can be blue and white color.

PVC material can ba blue and black color.

Both of PP and PVC material can add UV protection.

Tube Settler Packing

Pallet, wooden box, naked packing with container.

1. We can glue the tube settler sheet in block and load in container, which requires more space and cost more freight.
2. Send the pieces without gluing together, which will save much more freight. And the video of how to glue the pieces will be sent too.

FAQ

Q: Are you trading company or manufacturer?
A: We are factory in China.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: T/T, Paypal, Western Union, Visa, E-checking, etc.
