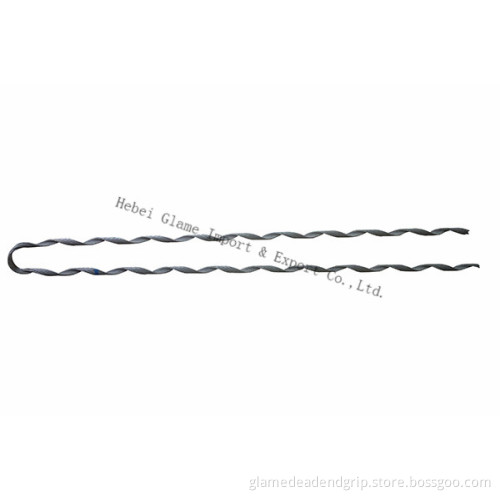

Dead End Clamp

Get Latest Price

Payment Type:: L/C, T/T

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Tianjin

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	6,000,000-8,000,000 pcs per year
Payment Type:	L/C,T/T
Certificate:	ISO9001
Transportation:	Ocean
Port:	Tianjin

Product Description

Component

Thimble,Amor rods

Characteristic

1. Stress is distributed equally, without stress focus. It can protect AAAC/AAC cables very well.

2. Under the condition of not exceeding the intensity of cable's side pressure, it has higher grip power for the cable, and can support higher tensile force.

3. Simple installation, No special tools needed, and one person can finish the whole installation.

Select Chart

Model no.	GB/T1179-1983	Conductor Dia		Length(mm)	Weight(kg)	Color code
Model no.	AAAC/AAC	Min(mm)	Max(mm)	Length(mm)	Weight(kg)	Color code
NL-16/LJ	16	4.62	5.16	406	0.1	Blue
NL-25/LJ	25	5.80	6.53	444	0.1	Orange
NL-35/LJ	35	7.35	8.26	622	0.2	Red
NL-50/LJ	50	8.27	9.25	685	0.2	Green
NL-70/LJ	70	10.40	11.68	736	0.4	Blue
NL-95/LJ	95	11.69	13.11	800	0.4	Orange
NL-120/LJ	120	13.12	14.66	876	0.6	Red
NL-150/LJ	150	14.67	16.59	889	0.8	Black
NL-185/LJ	185	16.60	18.77	1016	1.1	Green
NL-210/LJ	210	16.60	18.77	1016	1.1	Green
NL-240/LJ	240	18.78	21.26	1155	1.7	Orange
NL-300/LJ	300	21.27	24.05	1270	2.3	Blue
NL-400/LJ	400	24.06	27.20	1422	3	Brown
NL-500/LJ	500	27.21	30.78	1651	4.9	Orange
