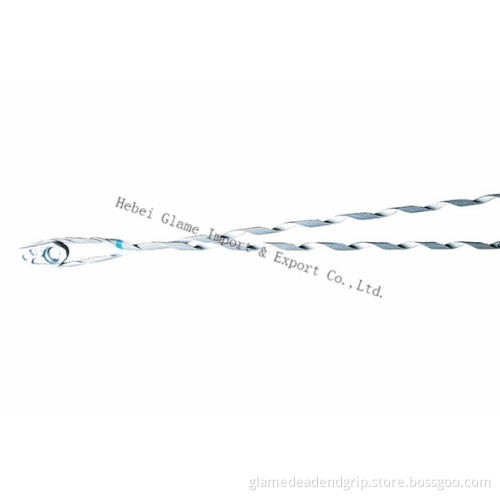

Preformed Dead End Grip

Get Latest Price

Payment Type:: L/C, T/T

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Tianjin

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	6,000,000-8,000,000 pcs per year
Payment Type:	L/C,T/T
Certificate:	ISO9001
Transportation:	Ocean
Port:	Tianjin

Product Description

Component

Thimble, Armor rods

Characteristic

1. Stress is distributed equally, without stress focus. It can protect ACSR cables very well.

2. Under the condition of not exceeding the intensity of cable's side pressure, it has higher grip power for the cable, and can support higher tensile force.

3. Simple installation, No special tools needed, and one person can finish the whole installation.

Select Chart

Model no.	LGJ/LGJF GB/T1179-1983	Conductor Dia		Length(mm)	Weight(kg)	Color code
	Cross section Al/Steel(mm)	Min(mm)	Max(mm)
NL-16/3	16/3	5.17	5.79	444	0.1	Brown
NL-25/4	25/4	6.54	7.34	546	0.1	Yellow
NL-35/6	35/6	7.35	8.26	622	0.2	Red
NL-50/8	50/8	9.26	10.39	685	0.2	Yellow
NL-70/10	70/10	10.40	11.68	736	0.3	Blue
NL-50/30	50/30
NL-70/40	70/40	13.12	14.66	876	0.6	Red
NL-95/15	95/15
NL-95/20	95/20
NL-120/7	120/7
NL-120/20	120/20	14.67	16.59	889	0.8	Black
NL-95/55	95/55
NL-120/25	120/25
NL-150/8	150/8
NL-150/20	150/20	16.60	18.77	1016	1.1	Green
NL-150/35	150/35
NL-120/70	120/70
NL-185/25	185/25	18.78	21.26	1155	1.7	Orange
NL-210/10	210/10
NL-210/35	210/35
NL-210/50	210/50
NL-240/40	240/40	21.27	24.05	1270	2.3	Blue
NL-240/55	240/55
NL-300/25	300/25
NL-300/40	300/40
