Single Arm Uncoiler/ Double Arms Uncoiler/Butt-to-butt Uncoiler
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 90 Days
- Transportation:
- Ocean
- Port:
- Tianjin, Qingdao
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Supply Ability: | 30 sets per year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | Tianjin,Qingdao |
Product Description
Product Description

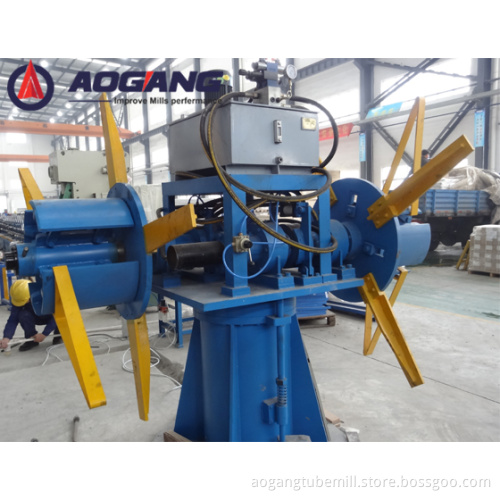

It is the important equipment of front preparation in welding pipe mill line ,maily used to hold steel strip to make coils unfold ,supplying raw material for the production line.
| Type | Width(mm) | Thickness(mm) | Coil ID.(m) | Coil OD.(m) | Weight(t) | Structure |
| φ50 | 40~200 | 0.8~3.0 | 420~620 | Max.1600 | Max.3.0 | Double |
| φ76 | 100~260 | 0.8~3.5 | 420~620 | Max.1800 | Max.5.0 | Double |
| φ127 | 120~400 | 1.0~4.0 | 450~550 | Max2000 | Max.5.0 | Single |
| φ140 | 160~440 | 1.0~4.5 | 450~550 | Max2000 | Max.6.0 | Single |
| φ165 | 280~520 | 2.0~6.0 | 450~550 | Max2000 | Max.8.0 | Single |
| φ219 | 360~700 | 2.0~8.0 | 450~550 | Max2000 | Max.10.0 | Single/Butt-to-butt |
| φ273 | 520~860 | 4.0~10.0 | 450~550 | Max2000 | Max.15.0 | Single/Butt-to-butt |
| φ325 | 500~1020 | 4.0~12.0 | 580~760 | Max2200 | Max.25.0 | Single/Butt-to-butt |
| φ426 | 600~1300 | 6.0~16.0 | 580~760 | Max2200 | Max.25.0 | Single/Butt-to-butt |
| φ508 | 700~1650 | 6.0~18.0 | 610-760 | Max2200 | Max.30.0 | Single/Butt-to-butt |
| Φ630 | 900-2000 | 6.0-22.0 | 780-860 | Max2200 | Max 40.0 | Single/Butt-to-butt |
