Roller Shutter Door Roll Forming Machine

Roller Shutter Door Roll Forming Machine

$10000.00 - $25000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Tianjin Xingang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei
Productivity:	200 sets/year
Supply Ability:	200 sets/year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	CE/ISO9001
HS Code:	84552210
Transportation:	Ocean
Port:	Tianjin Xingang

Product Description

Roller Shutter Door Roll Forming Machine

This door frame machine is designed according to cutstomer require. One machine can produce same profile but different sizes. It saves lots of cost, and get customers great satification

Working Flow:

Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table

Technical parameters:

Raw material	Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range	0.3-1.0mm
Rollers	10+5 groups
Material of rollers	45# steel with chromed
Shaft material and diameter	40mm, material is 40Cr
Forming speed	10-15m/min
Main motor power	5.5KW
Hydraulic power	3.0KW
Cutting type	Hydraulic flying saw
Controlling system	PLC
Voltage	380V/3Phase/50Hz
Way of driven	1.0 inch single chain transmission
Total weight	2 tons
Size of the machine	LWH 60.81m

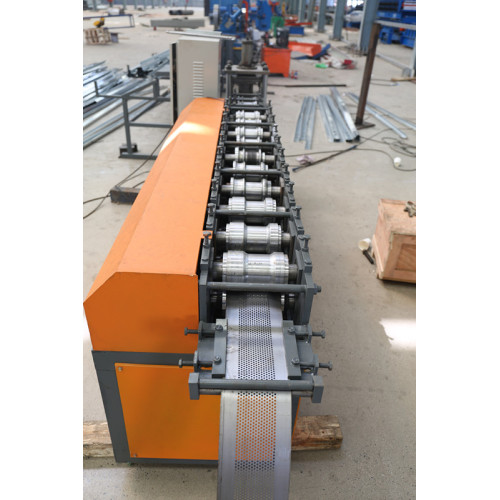

Pictures of machine:

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.

Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :

Roof roll forming machine

Roller shutter door roll forming machine

C and Z purlin roll forming machine

Downpipe roll forming machine

Light keel roll forming machine

Shearing machine

Hydraulic decoiler

Bending machine

Slitting machine

FAQ:

Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
