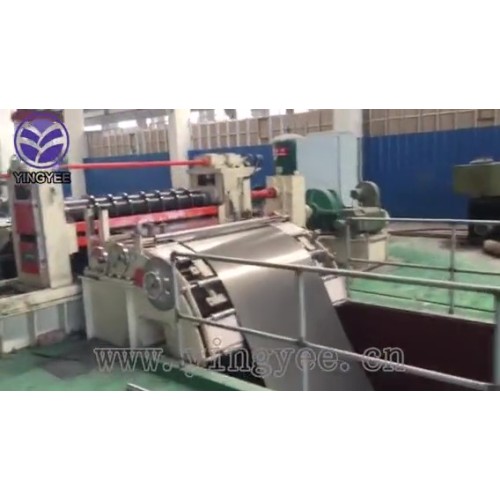

High speed steel coil slitting production line

Automatic slitter for steel coils

Main technical parameters

1. Raw material parameters

Material: ordinary cold rolled steel sheet, galvanized sheet, etc

Plate thickness 0.5 ~ 3.0 mm, stainless steel thickness 2.5 mm

Plate width 500 ~ 1500mm

Coil inner diameter Φ 508mm / Φ 610mm

Coil outer diameter ≤ Φ 2200mm

Maximum weight of coiled material 16000kg

2. Finished product parameters

Inner diameter of strip: Φ 508mm

Outer diameter of strip ≤ Φ 1500mm

The maximum winding weight is 10000kg

Minimum steel strip width 30mm (plate thickness ≤ 1)

3. Equipment parameters

Number of slitting

12 pieces (1.5-2.5mm thick common plate)

30 pieces (0.5-2.0mm)

The longitudinal shear speed is Max 160m / min, and the thickness of 2.0-3.0mm is 120m / min

The total power is about 260kw

The cutting direction faces the operation from right to left

The voltage ：380v/60hz/3phase
