Solar PV Panel Rolling Machine

Get Latest Price

Payment Type:: L/C, T/T, Money Gram

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Tianjin Xingang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei
Productivity:	200 sets/year
Supply Ability:	200 sets/year
Payment Type:	L/C,T/T,Money Gram
Incoterm:	FOB,CFR,CIF
Certificate:	CE/ISO9001
HS Code:	84552210
Transportation:	Ocean
Port:	Tianjin Xingang

Product Description

Solar PV Panel Rolling Machine

1. Yingyee support bracket roll forming machine manufacturing series is made up of uncoiler, feeding part, punching part, main roll forming system, cutting system

and receive table. Engel Roll Forming Machine,

2. Solar PV machine Gi C Purlin Forming is stable, no noise, no shake,

3. Metal Sheet Straightening Machine Controlling by PLC, operation is easy, running is steady and reliable, endurable, maintenance free.

4. Cutting machine is characterized by stable driving, easy operation.

5. Hydraulic system use the hydraulic pump, long operating life, no noise.

Working Flow:
Decoiler - Feeding Guide - Servo feeding system - Hydraulic punching - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table

Working process

Technical parameters:

Matching material	Galvanized, PPGI, Aluminum
Material thickness range	1.5-2.0mm
Feeding width	300mm(can change according to buyer's request)
Roller	24 rollers
Material of roller	Gcr15
Main motor power	30KW
Forming speed	8-15m/min
Shaft material and diameter	80mm, 45# steel with chromed
Way of driven	Chain transmission or gear box
Material of blade	Cr12 mould steel with quenched treatment 58-62℃
Voltage	380V/3Phase/50Hz
Controlling system	PLC

Pictures of machine:

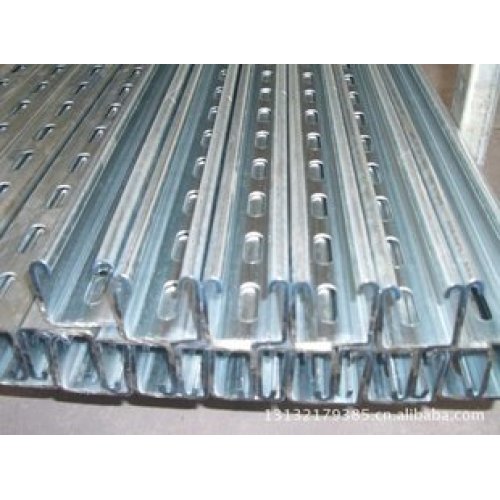

solar PV bracket

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.

Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :

Roof roll forming machine
Roller shutter door roll forming machine
C and Z purlin roll forming machine
Downpipe roll forming machine
Light keel roll forming machine
Shearing machine
Hydraulic decoiler
Bending machine
Slitting machine

FAQ:

Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
