Wear Resistant Gravel Dredge Pump For Gold Dredging

Simple structure wear resistant gravel dredge pump for gold dredging

Description:

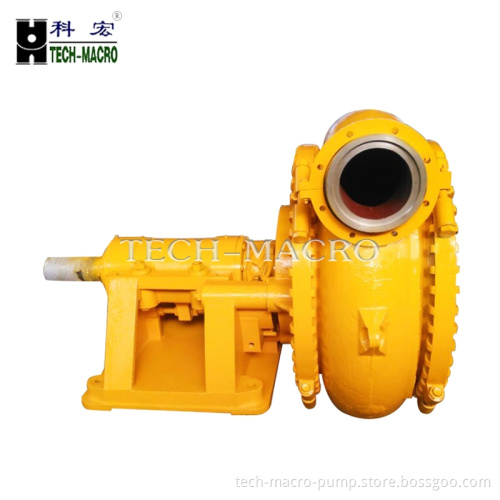

The KS(H) sand sucker gravel dredge slurry pump ( sand&gravel pump) is single-stage, single-suction, single-casing horizontal slurry pump, and the KS(H) pumps are high head ones. The pumps are designed for continuously transferring strong corrosive big-solid-contained slurry which the common slurry pump cannot transfer.

They are widely used in mining, explosive-sludge in metal melting, dredging in dredger, channel ,river, gold dredging .

Typical Application:

• Dredging in dredger
• River channel dredging
• Stone material processing factory
• Transferring power plant ash
• Delivering furnace clinker in iron works

Features:

• Abrasion-resistance,corrosion-resistance; large capacity; wide flow channel; efficient operating; good performance of NPSH; easy maintenance; anti-clogging.
• Special clamping device of the jointing for pump body and pump cover enables the pump discharge point to any direction.
• The wet parts , including impeller, frame plate, throatbush, frame plate liner insert, all adopt anti-corrosive alloy cast iron or steel.
• The pump consists of pump head, seal assembly, bearing assembly and frame. The bearing assembly is lubricated by grease.
• The pump can be driven by V-belt, coupling directly or by reducer.
• Packing seal, expeller seal and mechanical seal are all available for the pump.

Operating Limits

• Inlet diameter:6-32 inch(150-812 mm)
• Discharge diameter:4-28 inch(100-711 mm)
• Flow capacity:36-14400 m3/h
• Head :5-90 m

Type notation

 For example

 300 G-KS

 300—— discharge diameter (mm)

 G —— frame form

 KS—— gravel pump

Company information :

Shijiazhuang Tech-macro pump industry co.,ltd is a professional pump manufacturer of slurry pump ,dredging pump,gravel pump,sewage pump,clean water pump ,and various of spare parts,etc.Our pumps are mainly used for coal,minng ,metallurgical,power plant,FGD, chemical&petroleum,building materials, envrionment protection,sewage treatment ,water supply&drainage in city and factory,water conservancy ,municipal departments and others .Tech-macro 's products have been sold to lots of province in China ,and also exported to Europe,America,southeast Asia,south Africa ,Russia ,etc,more than 50 countries and regions .

High quality products ,reasonable and good service,to ensure reliable operation !

Serivce Tenet:

To survive with quality ,to growth by technology ,to provide higher cost-effective pump products and service for our society are our cons tant pursuit !We would like to inaugurate the future with you !Welcome to our company !Welcome to our factory!

Pre-sale service :accurately grasp customer needs,professional tecnical support,optimal design solution .

In-sale service :to provide users with technical guidance,site installation and training service .

After-sale service :regular follow-up,timely spare parts supply and maintenance service,quick response .
