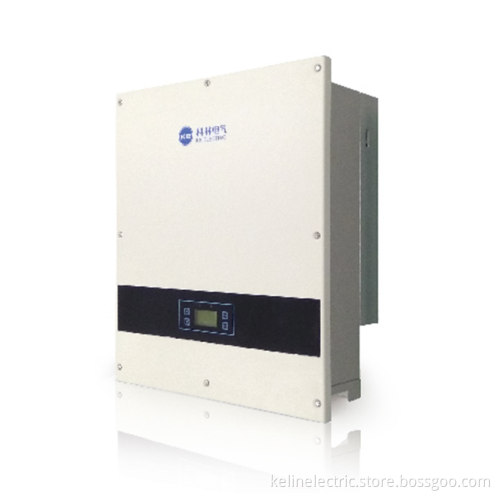

Three phase string type grid-tie PV inverter
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 10 Set/Sets
- Min. Order:
- 10 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shijiazhuang, Hebei, CHINA |
|---|---|
| Productivity: | 50000/month |
| Supply Ability: | 50000/month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO 9001 |
| HS Code: | 1301964686 |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin,Guangzhou |
Three-phase string type grid-tie PV inverter
1. High efficiency power generation
* Modularized unit circuit, maximum conversion efficiency can reach 98.6%.
* Quick, high precision MPPT software strategy with tracking efficiency up to 99.9% .
* Wide voltage input range, multi-modules parallel connection solution available.
2. Intelligent network management
* RS485, GPRS and WiFi communication modes available.
* Inbuilt collection module, filing by scanning code, fast access to the network.
* Internet+ distributed PV operation and maintenance management platform ensures after-sale service initiative.
* Multiple inverters connected to grid in parallel, automatically adapting to various complex grid environment. Mobile APP remote monitoring available.
3. Safe and reliable
* Inbuilt AC&DC lightening protection, anti-islanding protection, DC&AC protection.
* IP65, air-cooling designed, able to withstand harsh natural conditions.
* Parameter quick browse via LCD, easy and convenient for installation.
4. Grid friendly
* THD < 3%, output power factor > 0.9.
* Active power and reactive power is adjustable and controllable, conforming to the grid management and control.
* Accurate measurement guarantees the revenue.
|
Type |
KE-GT10KTL3 |
KE-GT12KTL3 |
|
DC Input |
||
|
Max. input power |
12.0kW |
13.5kW |
|
Max. input voltage |
1000V |
|
|
Starting voltage |
250V |
|
|
MPPT range |
200V-1000V |
|
|
Max. input current |
22A |
22A |
|
Max. MPPT number / number of string input of each MPPT |
2/1 |
2/1 |
|
AC output |
|
|
|
Rated output power |
10kW |
12kW |
|
Rated grid voltage |
3/N/PE，230V/400V |
|
|
Grid voltage range |
180V-276V (adjustable) |
|
|
Rated grid frequency |
50Hz/60Hz |
|
|
Work frequency range |
47-52Hz/58.5-61Hz (adjustable) |
|
|
Max. output current |
3*16A |
3*18A |
|
Output power factor |
0.95 (lead)~ 0.95 (lag) |
|
|
Total current waveform distortion rate |
< 3% |
|
|
Grid DC component value |
< 0.5% |
|
|
Inversion efficiency |
||
|
Max. efficiency |
98.6% |
|
|
European efficiency |
98.1% |
98.1% |
|
MPPT efficiency |
99.9% |
|
|
Protection |
||
|
DC reverse connection protection |
yes |
|
|
AC short circuit protection |
yes |
|
|
AC output overcurrent protection |
yes |
|
|
Output overvoltage protection |
yes |
|
|
Insulation impedance protection |
yes |
|
|
Residual current detection |
yes |
|
|
Surge protection |
yes |
|
|
Islanding protection |
yes |
|
|
Temperature protection |
yes |
|
|
DC switch |
Integrated |
|
|
Basic parameter |
||
|
Dimension |
437mm*522mm*218mm |
|
|
Weight |
24kg |
25kg |
|
Topology |
No transformer |
|
|
Self-consumption |
< 1W |
|
|
Work temperature and humidity |
-25-+60℃，0-100% |
|
|
Level of protection |
IP65 |
|
|
Noise |
< 30dB |
|
|
Cooling type |
Air cooling |
|
|
Max. work altitude |
>2000m |
|
|
Design lifetime |
> 20 years |
|
|
Certificates |
CQC |
|
|
Display |
LCD |
|
|
Communication port |
RS485 / WiFi / GPRS (optional) |
|
|
Warranty |
5 years, can extend to 10 years |
|
