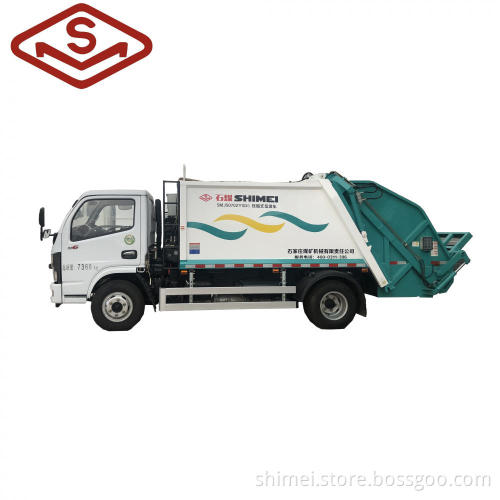

High quality compressed garbage truck
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean
- Port:
- Tianjin Port
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean |
| Port: | Tianjin Port |
Compressed garbage trucks are mainly used for municipal, sanitation and large factories and mines to transport all kinds of domestic garbage. The loaded garbage can be compressed and crushed to increase its density and volume, which greatly improves the efficiency of garbage collection and transportation, and has reliable quality and low failure rate. Easy maintenance and low operating costs.
●The main part of the vehicle is made of high-strength steel plate to improve the durability and wear resistance of the vehicle and reduce the weight of the vehicle.
●The cabinet adopts a curved shell structure and is beautiful in appearance.
●Manual and automatic operating system is easier to operate and easy to maintain.
●There are two sewage tanks in the cabinet: one in the lower part of the rear loading device, which can be used to fill the sewage inside the filling device; one side of the vehicle can pack the sewage in the tank to avoid the pollution of the vehicle while driving or stopping.
●The plugging device has a large opening angle and is completely unloaded and accessible.
●According to the actual needs of the user, the tipping mechanism and the tipping mechanism of the 240L square plastic bucket can be selected.
Product Model
SMJ5160ZYSD5
Dimensions(mm)
8650，8850，8900×2480×3180
Chassis model
DFL1160BX1V
Chassis engine model
ISB180 50(Commins)132kW
ISD210 50(Commins)155kW
Total mass(kg)
15800
Curb quality(kg）
10255,10755
Wheelbase
4500
Approach / departure angle
20/10
Trash can effective volume
12
Packer volume
≥1.2
Loading cycle time(s)
≦40
Pushing and unloading garbage trucks(s)
≦45
Hydraulic system rated pressure(MPa）
16
Control method
Manual / Auto
Tail standard configuration
Tumbler device
Optional institution
Dump device, swing arm device
( °）
