Adjustable Triangle Telescopic High Voltage Insulated Operating Rod
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 20 Piece/Pieces
- Min. Order:
- 20 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Xingang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | Xingang |

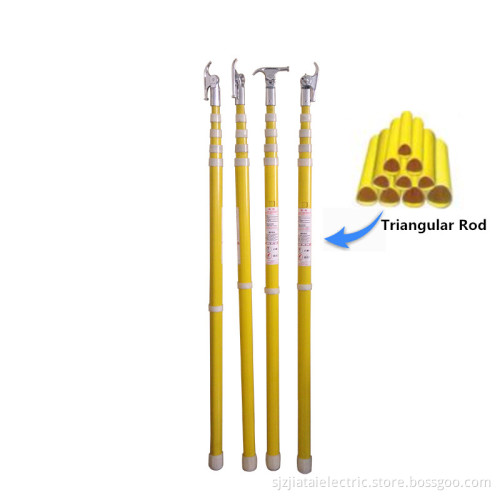

Telescopic High Voltage Operating Rod Stick
Telescoping hot sticks have maximum convenience for the lineman because they permit him to perform many routine jobs from ground level. The universal end fitting on the insulated top section accepts a wide variety of attachments so the lineman can disconnect switches, replace cutout tubes and reclose, remove pole covers, prune trees, replace bulbs and complete many other overhead tasks.
The advantage :
1. Top Raw Material ,Fiberglass + Aluminium
2. Special Manufacture Process
Knitting Tech apply in pultrusion process to increase the bending and torsion strength.
3. Smaller the deflection distance and light weight
4. 100% electrical 100KV/300mm Tested
5. Good performance of the foam filled tube
6. Smooth surface and Tailor Made Marking
Specifications :
|
Type |
Extension length (m) |
Closed length(m) |
Rod diameter(mm) |
Weight(kg) |
Section |
|
3-3.8 |
3.8 |
1.50 |
35.0 |
2.00 |
3 |
|
4-5.0 |
5.0 |
1.56 |
39.0 |
2.50 |
4 |
|
5-6.4 |
6.4 |
1.68 |
43.8 |
3.00 |
5 |
|
6-7.8 |
7.8 |
1.72 |
48.2 |
3.90 |
6 |
|
7-9.2 |
9.2 |
1.82 |
52.6 |
4.80 |
7 |
|
8-10.6 |
10.6 |
2.00 |
57.0 |
5.50 |
8 |
|
8-12.0 |
12.0 |
2.08 |
57.0 |
6.50 |
8 |
