SAE J2064 Type E R404a Refrigerant Hoses

SAE J2064 Type E R404a Refrigerant Hoses

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 500 Meter

Min. Order:: 500 Meter

Delivery Time:: 20 Days

Transportation:: Ocean, Land, Air

Port:: Tianjin, NIngbo, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	hebei
Productivity:	500000m/week
Supply Ability:	500000m/week
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO2009
HS Code:	40093100
Transportation:	Ocean,Land,Air
Port:	Tianjin,NIngbo,Shanghai

Product Description

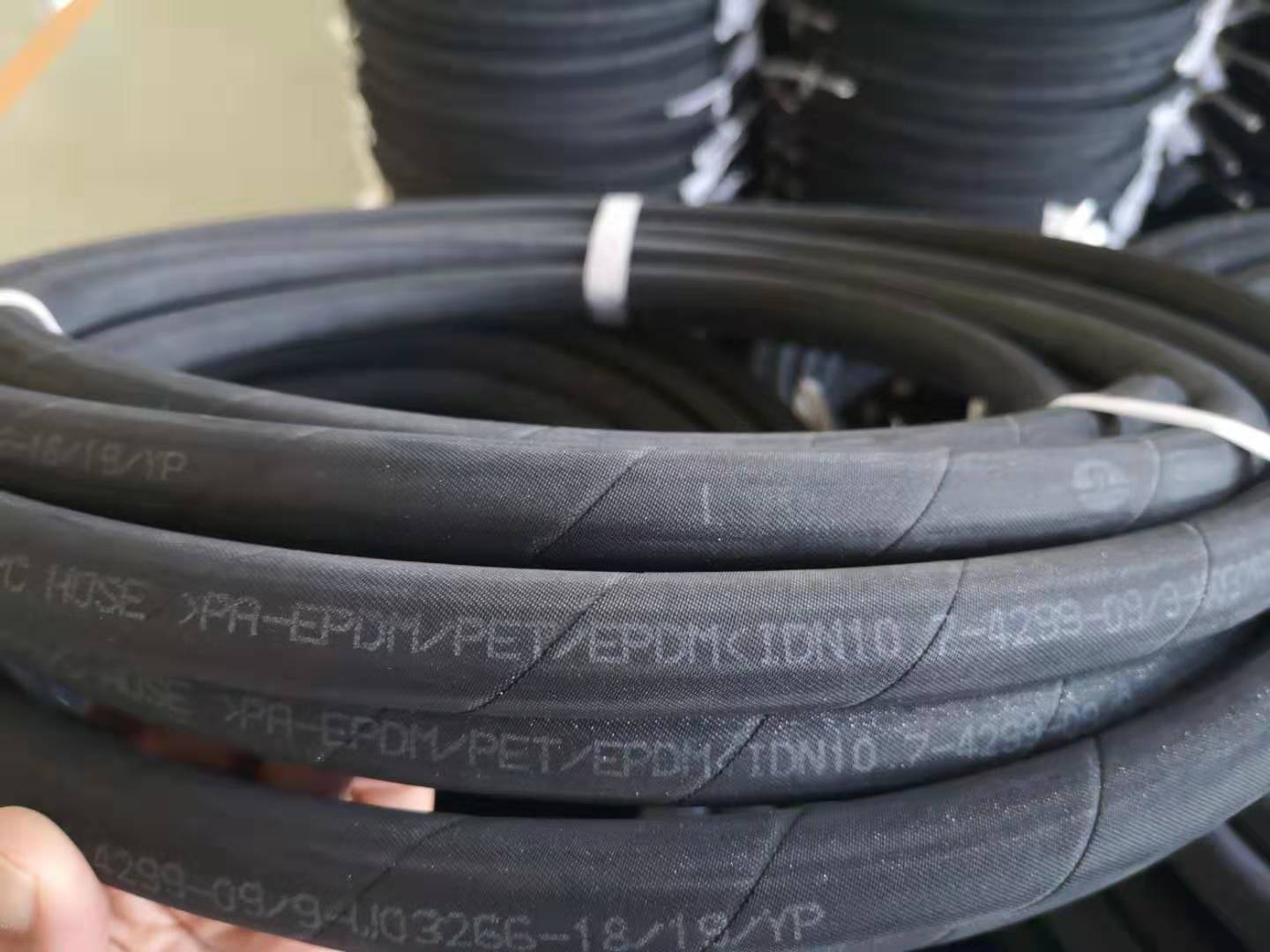

SAE J2064 Type E R404a Refrigerant Hoses

Hebei Ala Technology Co., Ltd.

becky( at ) ala-global.com whatsapp/wechat: +8613111532426 acparts68(@) Type E air conditioning hose gmail.com

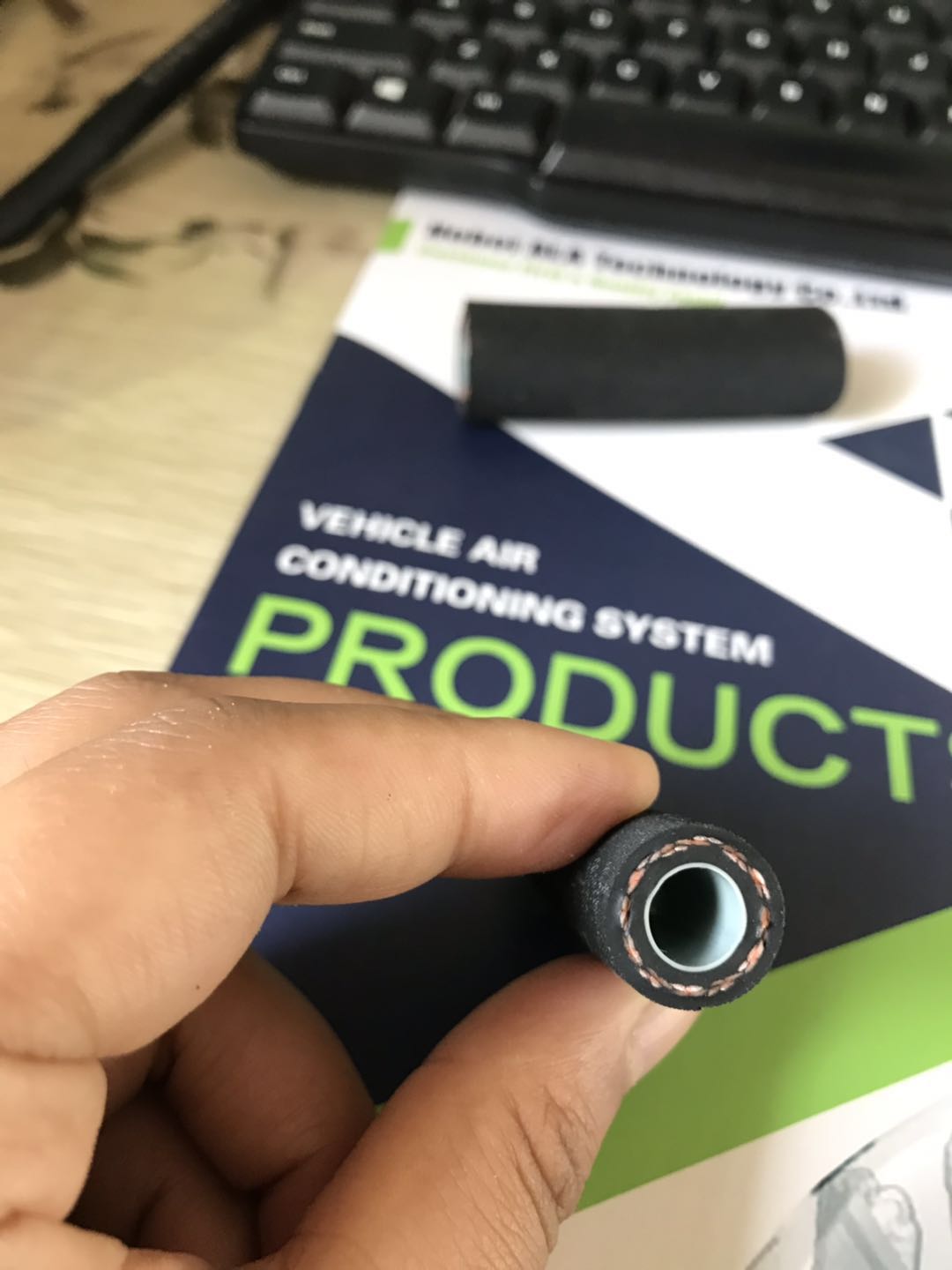

SAE J2064 Type E Air Conditioning Hose( 4 layer) Transport refrigeration Hose
Parts No.	Size	I.D. (mm )	O.D. (mm )	Diff. Max. mm	Rein.	Working Pressure (Mpa )	Burst Pressure Min.(Mpa )	R Min. mm	Weight g/m
Ala-Hose-50021	8.2	8.2±0.3	16±0.5	0.4	1	3.5	18	60	171
Ala-Hose-50022	10.7	10.7±0.3	18.8±0.5					75	206
Ala-Hose-50023	12.7	12.7±0.3	21.5±0.5					85	262
Ala-Hose-50024	16.1	16.1±0.3	24.1±0.5					95	275
Ala-Hose-50025	18.5	18.5±0.4	27.5±0.5				15	105	362
Specification: SAE J2064 E & Installation kit engineering specification 12/07/2005 ver3 Adhesion: TUBE- BARRIER-BUFFER ： Min.16N/cm REINFORCEMENT- COVER: Min.10N/cm Work Temp.: -40 ℃ ~+140 ℃ 1. Permeation, R404a , +80 ℃: Max.9.7kg/m 2 /y . 2. Ageing test: (1) +140 ℃ X200h; (2) +140 ℃ X1000h : no crack or damage. 3. Low temperature test: 100 ℃ ×48h ， -30 ℃ ×24h ： no crack or layering 4. Vacuum Collapse: {(1)10 土 5mmHg×2min (2) 10 土 5mmHg×2h} : diameter decrease Max.20% . 5. Length change: 2.7MPa×1min: Max.-4%~+2% 6. Guarantee test: 6.8MPa×30s: no leakage 7. Cleanliness test: Max.38mg/m 2 8. Extraction test, 70 ℃ ×24h: Max.118g/m 2 9. Integrity of assembly: weight loss Max.10g 10. Ozone Resistance, 50pphm, 40 ℃ ×70h: no crack of cover 11. Impulse test , 0~3.5MPa, +130 ℃: Min.150000 12. Moisture infiltration test: Max.3.90×10 -4 g/(mm 2 ·y) 13. Vibration test, 30Hz, amplitude 10mm, 3.0MPa, 80 ℃ ×100h: Max weight loss 8.0mm:0.65g, 10.7mm:0.68g,12.7mm:0.7,16.1mm:1.0g ， 19.0mm ： 6.3g
Packing: 100m/ Roll Packaged with the Plastic film, Then 5 rolls in a big carton.

1. We also can supply you Goodyear Galaxy size of Auto Air Conditioning Hoses, Welcome To inquiry.
2. Also we can supply you all kinds of Fittings for Goodyear Galaxy R134a A/C Hoses.
