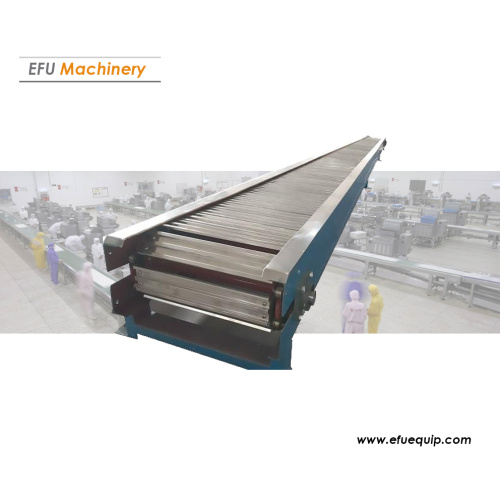

Flat Top Chain Conveyor

Structure and characteristics

The flat top chain conveyor adopts the standard top plate chain as the bearing surface, which is driven by the motor reducer and supported on the special guide rail. The top chain can choose carbon steel, stainless steel or thermoplastic chain, and choose the flat form of different shapes to complete various functions such as plane conveying, plane turning, lifting and lowering.

Features

The conveying capacity is large; the conveying chain is composed of a traction chain, a load chain and a forward overlap (or reverse overlap) hopper. The three parts can be freely loaded and unloaded; the load-bearing rollers are equipped with rolling bearings to replace the previous sliding friction with rolling friction , The running resistance is reduced by 55%-65%, the power consumption of the conveyor is greatly reduced, and the energy consumption is low; the traction chain and the load-bearing chain are separated, which simplifies the structure, reduces the cost, and is convenient for installation and maintenance.

Application advantages

The flat-top chain conveyor has the advantages of wear resistance, corrosion resistance, precise structure, and stable operation.
1. Suitable for conveying bottles, cans and boxes.
2. The conveying surface is flat and not easy to pour bottles.
3. Simple structure, stable operation, convenient maintenance and long service life.
4. Smooth turning operation is suitable for combined transportation in complex situations.
5. Multi-column combination is required for line width 90mm-2000mm.
6. The frame material can choose stainless steel, carbon steel, aluminum alloy.
7. Chain plate material can choose POM (plastic steel), PP (polypropylene), stainless steel.
8. The single-machine drive generally does not exceed 10 meters.

9. The maximum linear speed generally does not exceed 40 meters.

Application of Flat Top Chain Conveyor

The flat-top chain conveyor can be widely used in automatic transportation, distribution and packaging of food, canned beverages, cosmetics and detergents. It has the characteristics of wear resistance, corrosion resistance, precise structure, and stable operation. It is an indispensable transportation for flat-direction transportation. equipment.
