Industrial Meat Slicer Machine

Frozen meat slicer is a good choice to slice bacon. It has a very stroong balde to cut bacon into expected thickness. The

thickness range is between 1-32mm. In acutal running and operation of bacon slicer, you just need to put the smoked

bacon into feed inlet, and set the balde speed and feeding speed, push the start button to slice bacon into wanted

thickness. There are flat feeding inlet and inclined options, and the bacon slicer must be a flat type, because it is good to

get better slicing products.

Equipment List of Bacon Slicer Machines

To minumu the size of machine as mush as possible, to meet  the requirement of slicing small products, such as jerky, sausage, and cooked meat, etc. Its function is the same as the industrial type to accuracy thickness cutting result.		To cut and slice the most popular products for our customers. To improve production, increase income and cut down the waste using our slicers meeting your individual processing requirements.		The flat infeed chute design is the best structure to cut bacon products. You just need to put your products into infeed chute and set the parametes by touch screen, then to start and complete the task easily and accurately.
To find out the best automatic slicing soluton with the help of automatic slicer machine.		With special baldes, the automatic slicer are applied to cut different products. To cut rib products, a saw blade is required to complete the task.

Equipment Details of automatic slicer machine

		The touch screen and operation panel of the bacon slicer are all waterproof. Add a protective cover to the touch screen.
The blade produced in Germany is made of excellent alloy steel, strong and durable, and are an effective guarantee for the production of high-quality products.
		Comply with food hygiene and production safety standards

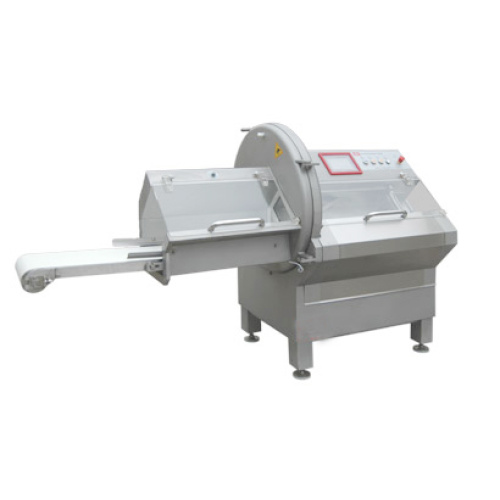

Bacon Slicer EFQK-011 Introduction

The slicer EFQK-011 can be used to cut the frozen meat cubes, ribs ,cured meats,sausages,etc, into slicers with the thickness of cut slice adjustable, and can satisfy the users’ pouch-packing portioning demand with number of slices in each portion reaching 99 slices.

1.Feed efficient dynamic feed system, saving time.

2.The intelligent cutting characteristics, to prevent be decline in the product, to ensure that the quality of the product.

3.Retum restrictions, saves time.

4.Important components, such as controllers, reducer, motor used in all imports to ensure product quality.

5.The tool is directly connected to the drive motor and gear, high efficiency of power use.

6.Reliable security measures.

Technical Parameters

• Model:EFQK-011
• Cutting thickness :1-32mm (Adjustable)
• Cut speed :200 times/min
• Meat Temperature:0~-5℃
• Chopping length :700mm
• Max.Cutting cross-sectional area :250x180mm
• Power: 5kw
• Dimension: 2580x980x1350mm
• Weight: 600kg
