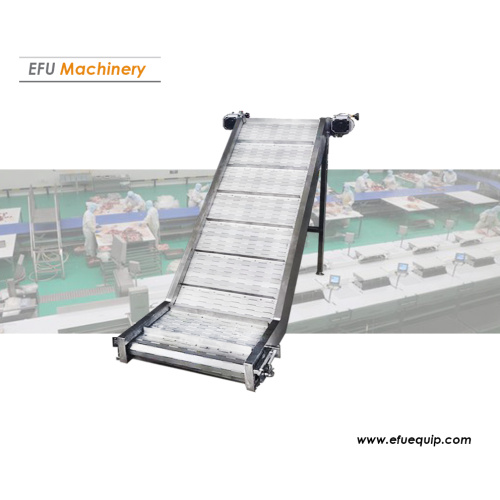

Inclined mesh belt conveyor

Features of climbing belt conveyor

The inclined mesh belt conveyor is suitable for continuous conveying of goods between floors or height differences. For climbing belt conveyors with a small inclination angle (≤30°), if the friction of the bottom surface of the cargo is large enough, a non-slip mesh belt with a pattern on the surface may be used; large inclination climbing belt machines need to add baffles or Skirt. From a control point of view, in order to prevent the heavy goods from going backwards under the action of gravity when stopping, the drive motor needs to be designed with a brake function.

The inclined mesh belt conveyor line is also used to transport goods between upper and lower floors, slope terrain, flyovers and other planes with height differences. In some cases, it can be used instead of a lift. In order to prevent the items from rolling down along the belt due to gravity when conveying granular items, the inclined mesh belt conveyor line can add a baffle at intervals.

Climbing mesh belt conveyor is to install rails, fixtures, skirts (baffles) and other methods on the mesh belt so that objects can be lifted and conveyed at a larger angle. It has the characteristics of high efficiency, fast conveying, low noise and uninterrupted. Especially suitable for the transportation of small materials, such as food, injection molded parts, powder and various parts industries. Considering the tension limit of the mesh belt, the longest single wire length generally does not exceed 20 meters.

Climbing mesh belt conveyor application

Climbing mesh belt conveyors are widely used in the transportation of beverage bottles, aluminum cans, medicines, cosmetics, food and other industries. By choosing different mesh belts, they can be made into bottle storage stations, elevators, sterilizers, vegetable washing machines, and cold bottles. Machines and special equipment for meat and food transportation industries.
