Product Description

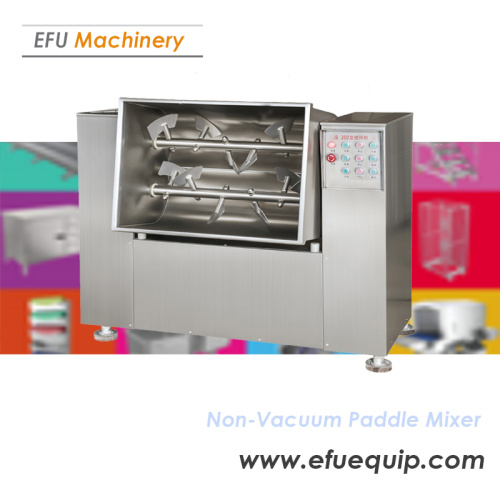

Introduction of Vacuum Double Shaft Paddle Mixer

Separating Line

Vacuum mixer (non-vacuum mixer) is mainly used for the initial processing of food stuffing, vacuum degassing, and even mixing. It has good versatility for granular, powder, paste, and slurry. It has an automatic discharging function, which is more convenient for people to use and reduces the labor intensity of workers. The structure of double twisted auger and fan-shaped mixing tooth makes the mixing of materials more rapid and even. The overall fixed mixing gear design is more in line with the requirements of food hygiene, achieving the smallest porosity in the box, and making the cleaning of the equipment more convenient. The multi-layer sealing structure of the shaft end will make the service life of the equipment longer.

Features of Vacuum Double Shaft Paddle Mixer

Separating Line

1. Equipped with automatic discharging device to reduce labor intensity;

2. The mixing paddle is equipped with a spiral tooth arrangement, and the impeller is cross-type, which is more suitable for mixing dry materials, so that the materials are mixed more evenly, and the single filling volume is more; 　

3. The gap between the impeller edge and the hopper is 5mm, the mixing is more uniform, and there is no dead corner;

4. Equipped with three layers of sealing protection to make the equipment longer service life and easier to clean.

5. Stirring and mixing of stuffing, loose and sauce-like materials.

6. The machine is equipped with forward and reverse operation, which can meet the requirements of different mixing processes.

7. The double twisted dragon structure is suitable for mixing various fillings.

8. The food contact and appearance parts are made of high-quality stainless steel materials, which meet the food hygiene requirements.

Performance Datas:

Separating Line

Model	Voltage （V）	Power （KW）	Tank（L）	Capacity （kg/次）	Worm Speed（r/min）	Dimension （mm）	Weight （kg）
JB-40	380V	0.37		20	75	770×330×690	≈95
JB-150	380V	1.68	150	75	75	1178×555×995	≈260
JB-300	380V	3	300	150	50/75	1480×650×1170	≈380
JB-550	380V	4.55	560	350	50/75	1903×706×1302	≈500
