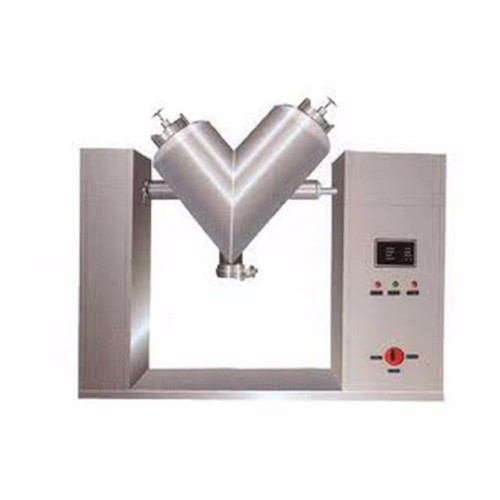

V-type high efficiency mixer

V-type high efficiency mixer

The mixing cylinder has a unique structure, high mixing efficiency, no dead corners, the cylinder body is made of stainless steel, the inner and outer walls are polished, the appearance is beautiful, the mixing is uniform, and the use is wide. Comply with GMP standards.

Applicable materials

This machine is used for the mixing of dry materials and particles in the food, pharmaceutical, chemical, metallurgical and other industries.

Model:V-type 2000L

1.Full volume: 2000L

2.Effective volume: 1000L

3.Loading factor: 0.4-0.6g/cc

4. Mixing time of each batch: about 20 minutes

Mixture:

1. Material name: food powder

2.Granularity: about 40-100 mesh

3.One-time mixing amount: 800-1000kg

4.The bulk density of the mixed materials is about 0.9kg/CC

Material:

1. Parts in contact with materials: SUS304 stainless steel.

2.Internal support part: Q235 carbon steel material.

3.Barrel thickness: 5mm—SUS304 stainless steel.

4. Sealing plate: 1.5mm—SUS304 stainless steel.

5. The thickness of the reinforcing rib of the fixed barrel: 10mm—SUS304 stainless steel.

6. Coupling: carburizing quenching + quenching and tempering treatment.

7.Motor board inside the bracket: 12mm—Q235 carbon steel material.

8.Reducer plate inside the bracket: 12mm—Q235 carbon steel material.

9.Spindle diameter: Φ110mm—SUS304 stainless steel.

10.The thickness of the inlet flange: 4mm—SUS304 stainless steel.

11. Thickness of feed inlet cover plate: 4mm—SUS304 stainless steel.

12.Stainless steel inner surface treatment: mirror 8K level.

This is a kind of equipment with high quality and good performance, which is well liked by customers.
