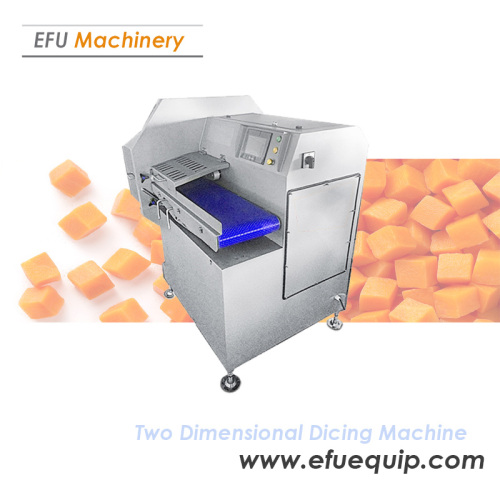

Central Kitchen Dicing Machine

Characteristic of Two-dimensional dicing machine

1. The machine frame is made of SUS304 stainless steel, which is durableThe machine frame is made of SUS304 stainless steel, which is durable1. Suitable for frozen tofu and frozen meat products (- 8 degrees) into lumps at one time. (Maximum cutting width is 300mm, height is within 70mm).

2. It adopts a new structure of self-adaptively compressing and conveying materials with multiple sets of upper compression feeding belts.

3. 304# stainless steel meets food-grade requirements, with independent feeding mechanism module, which can be quickly disassembled and cleaned, and an electric control box is installed underneath.

4. Independent safety protection cover and safety protection induction switch design, automatic lubrication system, automatic alarm and shutdown for lack of oil, automatic circulation of heat in the air inlet of the motor, fast side opening of the door, and rat-proof net at the bottom.

Performance Datas:


Model: EF-200

Machine material: stainless steel
Food material size: 420x230x680mm
Dimensional accuracy: 0.1 mm
Cutting range: 1-30 mm
Cutting speed: 200 times/minute (max)
Cutting temperature: minus 8 degrees -0 degrees
Maximum width: 300mm
Maximum thickness: 35mm

Power supply voltage: three-phase four-wire system, 380V
Equipment power: 7Kw
Dimensions: 1255x1025x1355mm
