No Skive Ferrule 00TF0

$0.60

≥500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Transportation:: Ocean, Air

Port:: Xingang Port China, Qingdao Port China, Shanghai Port China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	3000 pieces per day
Supply Ability:	5000 pieces per day
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001:2015
Transportation:	Ocean,Air
Port:	Xingang Port China,Qingdao Port China,Shanghai Port China

Product Description

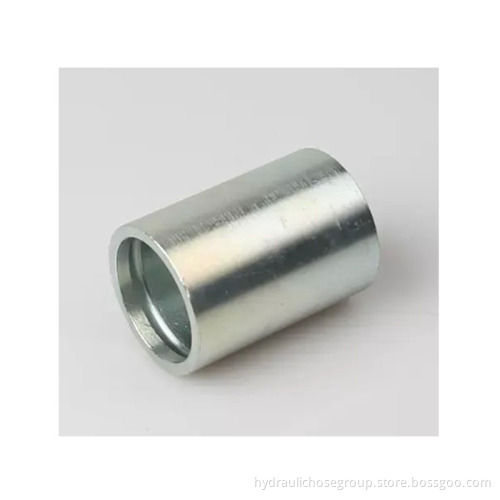

NO-SKIVE FERRULE FOR PTFE HOSE 00TF0

It is usded for TEFLON HOSE .

Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

Products Specification:

Ferrule 00TF0

HOSE BORE		DIMENSIONS
PART NO.	DN	DASH	D	L
00TF0-02	4	2	9.5	14.3
00TF0-03	5	3	11.9	27.5
00TF0-04	6	4	14.2	30.7
00TF0-05	8	5	16	30.6
00TF0-06	10	6	19	32.1
00TF0-08	12	8	23.8	34.3
00TF0-10	16	10	27	37
00TF0-12	20	12	30.2	42.8
00TF0-14	22	14	33.4	42.7
00TF0-16	25	16	36.5	50.8
