Hydraulic Hose EN857 1SC
-
$0.80≥5000 Meter
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Air
- Port:
- Xingang Port China, Qingdao Port China, Shanghai Port China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000 meters per day |
| Supply Ability: | 200000 mters per day |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO 9001:2015, MSHA |
| HS Code: | 40092100 |
| Transportation: | Ocean,Air |
| Port: | Xingang Port China,Qingdao Port China,Shanghai Port China |

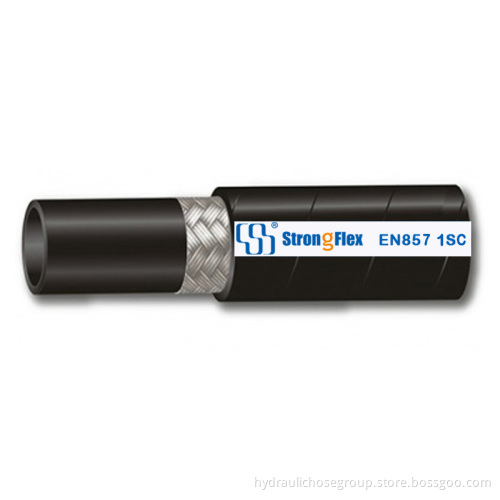

Hydraulic Hoses EN 857 1SC | Medium Pressure
Meets or exceeds the performance requirements of: EN 857 1SC, ISO 11237 1SC
Application: Low-medium pressure lines, return lines.
Inner Tube: Oil resistant Nittrile (BTR) tube.
Reinforcement: Single braid high-tensile steel wire reinforcement.
Cover Compound: Oil-resistant, abrasion-resistant, black Neoprene (CR) cover.
Temperature Range: - 40ºC to + 100ºC
Technical Specifications:
|
Hose ID
|
Wire OD
|
Hose OD
|
Working Pressure
|
Burst Pressure
|
Minimum Bend Radius
|
Weight
|
|||
|
inch
|
mm
|
mm
|
mm
|
Mpa
|
Psi
|
Mpa
|
Psi
|
mm
|
Kg/m
|
|
1/4
|
6.4
|
10
|
12
|
22.5
|
3270
|
90
|
12840
|
50
|
0.173
|
|
5/16
|
7.9
|
11.5
|
13.6
|
21.5
|
3120
|
85
|
12280
|
55
|
0.194
|
|
3/8
|
9.5
|
13.8
|
15.8
|
18
|
2610
|
72
|
10280
|
60
|
0.244
|
|
1/2
|
12.7
|
17
|
19
|
16
|
2320
|
64
|
9180
|
70
|
0.328
|
|
5/8
|
15.9
|
20.4
|
22.5
|
13
|
1890
|
52
|
7420
|
90
|
0.416
|
|
3/4
|
19.0
|
24.0
|
26.1
|
10.5
|
1530
|
42
|
6000
|
100
|
0.500
|
|
1
|
25.4
|
31.3
|
33.5
|
8.8
|
1280
|
35
|
5020
|
160
|
0.713
|
STRONGFLEX GR1SN-04 EN 857 1SC 1/4" (DN06) W.P. 22.5MPA (3270PSI )-XXXXXX-
Firstly We improve our Rubber Mixing Workshop up to Automatic Control Rubber Mixing Center.
All of Material is put into machine by electronic scale, the weight tolerant is 0.002 KG.
And the Rubber rolling and cooling also produced by automatic machine.
