Hydraulic Hose SAE100 R5
-
$2.00≥500 Meter
- Min. Order:
- 500 Meter
- Min. Order:
- 500 Meter
- Transportation:
- Ocean, Air
- Port:
- Xingang Port China, Qingdao Port China, Shanghai Port China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 20000 Meter per day |
| Supply Ability: | 200000 mters per day |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO 9001:2015, MSHA |
| HS Code: | 40092100 |
| Transportation: | Ocean,Air |
| Port: | Xingang Port China,Qingdao Port China,Shanghai Port China |

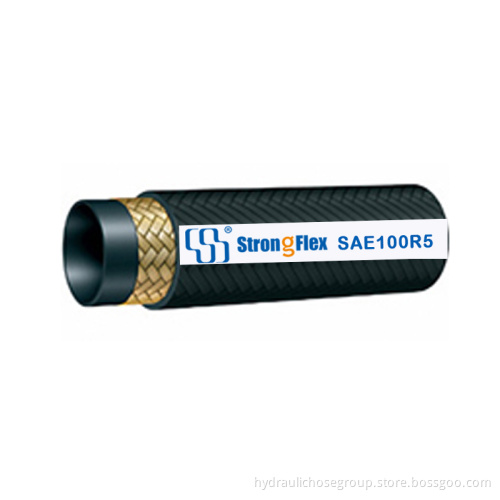

One Wire Hydraulic Hoses SAE 100R5 | Medium Pressure
SAE J1402 Type II, D.O.T. FMVSS 106 Type All | Truck Hose
Recommended for air brake, fuel, grease lines, high temperature petroleum oils and medium pressure hydraulic applications. Sizes -16 thru -24 are not SAE or DOT approved for air brake applications.
Application: General purpose, medium pressure applications including petroleum based hydraulic oil, air and water for use in air brakes, power steering, turbo oil lines, tilt cab cylinders, transmission coolant and filtration lines.
Inner Tube: oil resistant Nittrile synthetic rubber.
Reinforcement: one fiber braid and one steel wire braid.
Cover Compound: Impregnated fiber braid.
Temperature Range: - 40ºC to + 100ºC.
Technical Specifications:
|
Hose ID
|
Hose OD
|
Working Pressure
|
Burst Pressure
|
Minimum Bend Radius
|
Weight
|
|||
|
inch
|
mm
|
mm
|
Mpa
|
Psi
|
Mpa
|
Psi
|
mm
|
kg/m
|
|
3/16
|
4.8
|
13.2
|
20.7
|
3000
|
82.7
|
12000
|
76
|
0.24
|
|
1/4
|
6.4
|
14.8
|
20.7
|
3000
|
82.7
|
12000
|
86
|
0.29
|
|
5/16
|
7.9
|
17.1
|
15.5
|
2250
|
62.1
|
9000
|
102
|
0.36
|
|
13/32
|
10.3
|
19.5
|
13.8
|
2000
|
55.2
|
8000
|
117
|
0.48
|
|
1/2
|
12.7
|
23.4
|
12.1
|
1750
|
48.3
|
7000
|
140
|
0.55
|
|
5/8
|
15.9
|
27.4
|
10.3
|
1500
|
41.4
|
6000
|
165
|
0.65
|
|
7/8
|
22.2
|
31.4
|
5.5
|
800
|
22.1
|
32000
|
187
|
0.69
|
|
1-1/8
|
28.6
|
38.1
|
4.3
|
625
|
17.2
|
25000
|
229
|
0.84
|
|
1-3/8
|
35.0
|
44.4
|
3.4
|
500
|
13.8
|
2000
|
267
|
1.03
|
|
1-13/16
|
46.0
|
56.4
|
2.4
|
350
|
9.6
|
14000
|
337
|
1.26
|
|
2-3/8
|
60.5
|
73.0
|
2.4
|
350
|
9.6
|
14000
|
610
|
2.00
|
|
3
|
76.5
|
90.5
|
1.4
|
200
|
5.6
|
800
|
840
|
3.00
|
Strongflex manufacture Hydraulic Hose, Rubber Hose, Fibre Braided Hydraulic Hose,
Steel Wire Braided Hydraulic Hose, Hydraulic Hose Sae100, Spiraled Hydraulic Hose,
High Pressure Hydraulic Hose, Resin Twin Hose.
