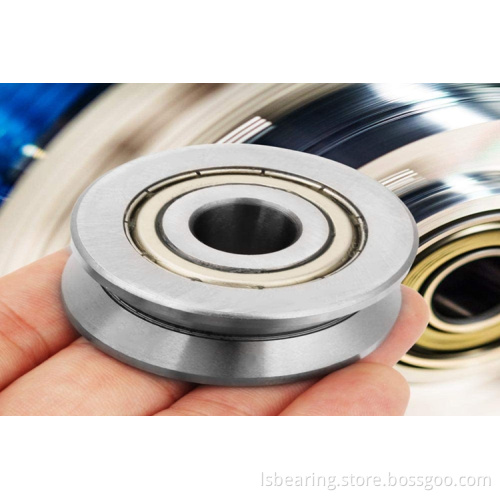

Chrome Steel Miniature V Deep Groove Bearing 6202ZZ

Chrome Steel Miniature V Deep Groove Bearing 6202ZZ

V Type Deep Groove Ball Bearing is the widely used in industrial robot, cutting equipment, mobile guide rail, production lines, most economy product among the linear motion track rollers, and they can suit to the cylindrical track.V groove roller bearing guide wheel bearing V groove wheel bearing

Concave bearings W1X W2X W3X W4X v groove ball bearings

V Type Deep Groove Ball Bearing Various structure: WV,LV,V,LFR,LR,W Series
V Type Deep Groove Ball BearingSealed type: Z, ZZ, RS, 2RS, 2RS1, NPP, KDD, P, PP, N, NR

V Type Deep Groove Ball BearingMaterial: GCr15,100Cr6,Chrome Steel,steel ,stainless steel

1.The surface of outer ring is the "W" profile formed by the two "V" with an angle of 90 degrees. The internal or external side face can be matched separately with the concave or protrudable track that both have a "V' profile with the angle of 90 degrees, and also the internal side face can be matched well with the cylindrical track.



2.Guide wheels bearings are the main components of the linear motion system,they can widely used in the industrial robot,cutting machine,motion track,production flow and so on.



3.Wheel feature the internal design of double row angular contact ball bearing and a thick-walledouter ring,so the wheels can accommodate higher loads



4.Guides wheels are made of the high-quality steel,processed by heat treatment and precision grinding and filled with a long service life,high-grade and multi purposes grease.

Guide bearing mantle the metal shield or rubber seal(suffix) to prevent the dust .

Shuangcheng bearing also can provide the wheels with the concentric or eccentric bushings as well as the wheels made from the corrosion resistance stainless steel



V Type Deep Groove Ball BearingFeatures:

A:Low resistance

B:long service life

C:widely use

D:easy installation



guide rail bearings v groove ball bearings
track roller bearing with v groove
v-shaped bearing
v guide wheel bearing
v guide wheels and tracks
linear shaft bearing
v shaped bearing

concave bearings



V Type Deep Groove Ball Bearing Specification

VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W1) and rubber cover seal (name of X suffix, such as: W2X) two kinds
If using stainless steel material, the name will be the words with the SS, such as: W3SSX

V Type Deep Groove Ball Bearing Application:

V groove bearings are the most widely-use and economy product among the linear motion track rollers, and they can suit to the cylindrical track. They are widely used in CNC machine,Plasma machine etc.

For mounting wherever axial and radial loads are expected
For most parts for torque transmission
Home appliances, electric motors, automotive components



SG Series Embroidery machine track roller bearing models:
SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N LFR50/5-4N LFR50/5N LFR50/5 LFR50/8N LFR50/8-8N


LV Series track roller bearing: LV 20/7 ZZ, LV 20/8 ZZ, LV20/10ZZ, LV 202-38 ZZ, LV 202-40 ZZ, LV 201 ZZ, LV 201-14.2RS, LV 202-41 ZZ, LV 203 ZZ, LV 204-57 ZZ, LV 204-58 ZZ
