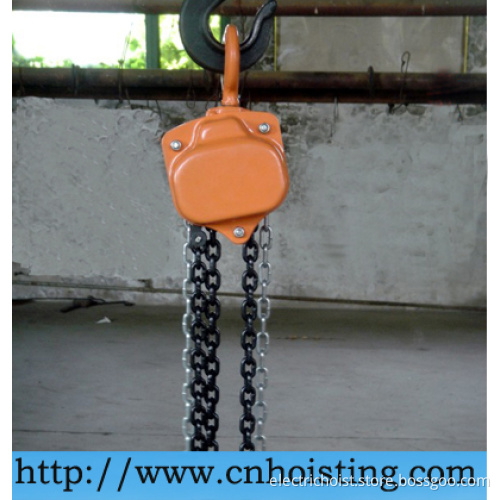

Products name : HS-Z chain hoist/chain block
HS-Z chain hoist / chain block is designed with transmission mechanism of symmetrically arranged two-step spur gears
This chain hoist /chain block can automatically brake with the friction plate and pawl brake system
This chain hoist/chain block is safety in operation and easy maintenance.
This chain hoist/chain block is high efficiency and small hand pull
And the chain hoist /chain block is light weight and easy handing.
Chain hoist /chain block is fine appearance with small size.
Chain hoist /chain block is durability in use.
|
model |
HS-Z-0.5 |
HS-Z-1 |
HS-Z-1.5 |
HS-Z-2 |
HS-Z-3 |
HS-Z-5 |
HS-Z-10 |
HS-Z-20 |
|
|
Capacity (t) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
|
|
lifting height (m) |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
|
|
test load (t) |
0.75 |
1.5 |
2.25 |
3 |
4.5 |
7.5 |
12.5 |
25 |
|
|
mini distance between hooks(mm) |
270 |
270 |
368 |
444 |
486 |
616 |
700 |
1000 |
|
|
chain pull to lift full load(n) |
225 |
309 |
343 |
314 |
343 |
383 |
392 |
392 |
|
|
no of load chain fall lines |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
8 |
|
|
dia of load chain (mm) |
6 |
6 |
8 |
6 |
8 |
10 |
10 |
10 |
|
|
dimension (mm) |
A |
120 |
142 |
178 |
142 |
178 |
210 |
358 |
580 |
|
B |
108 |
122 |
139 |
122 |
139 |
162 |
162 |
189 |
|
|
C |
24 |
28 |
34 |
34 |
38 |
48 |
64 |
82 |
|
|
D |
120 |
142 |
178 |
142 |
178 |
210 |
210 |
210 |
|
|
Net weight (kg) |
9.5 |
10 |
16 |
14 |
24 |
36 |
68 |
155 |
|
|
gross weight (kg) |
12 |
13 |
20 |
17 |
28 |
45 |
83 |
193 |
|
|
package size(L*W*H) |
28×21 |
30×24 |
34×29 |
33×25 |
38×30 |
45×35 |
62×50 |
70×46 |
|
|
Extra weight per meter extra lift (kg) |
1.7 |
1.7 |
2.3 |
2.5 |
3.7 |
5.3 |
9.7 |
19.4 |
|
Products are subject to change without notice.
