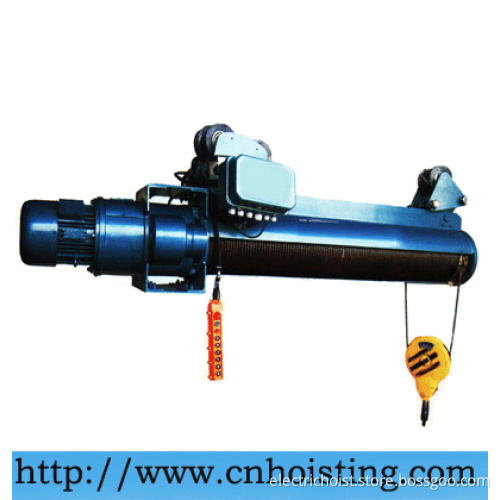

CD1 type wire rope hoist
1 reducer
Third-class dead axel helical gear transmission structure is adopted.gear and gear axel are made of heat treated alloy steel,case and case cover wih precise assembly and good seal are made of quality cast iron.The reducer is independent ,so it is easy to load and unload it.
2 Control box
It has device with up and down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.
3 Steel wire rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.
4 Conical motor
The hoist motor uses conical rotors of relatively stronger starting torque to brake asynchronnous motor and does not need extra arrester. The motor`s load duration factor is 25%, the motor uses B grade and F grade insulation and its grade of protection is IP44/IP54.
5 Button Switch
It is hand-operated ,easy to handle,and has two modes of cord operation and cordless remote control.
|
model |
CD1/MD1 |
||||||
|
capacity |
t |
0.25 |
0.5 |
1 |
2 |
3 |
|
|
Lifting height |
m |
3|6|9 |
6|9|12 |
6|9|12|18|24|30 |
6|9|12|18|24|30 |
6|9|12|18|24|30 |
|
|
Lifting speed |
m/min |
8 |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
|
|
Running speed |
m/min |
20(30) |
20(30) |
20(30) |
20(30) |
20(30) |
|
|
Steel Wire rope |
Rope diameter |
mm |
3.6 |
4.8 |
7.7 |
11 |
13 |
|
Linear diameter |
mm |
|
0.22 |
0.34 |
0.5 |
0.6 |
|
|
Wire rope type |
6*19 |
D-6*37+1 |
D-6*37+1 |
D-6*37+1 |
D-6*37+1 |
||
|
Type of I steel beam(GB706-88) |
16-22b |
16-28b |
16-28b |
20a-12c |
20a-32c |
||
|
Ring rail minimum radius (m) |
m |
0.8 |
1.5 |
1.5|2|3|4 |
2|2.5|3|4 |
2|2.5|3|4 |
|
|
Lifting motor
|
model |
|
ZD12-4 |
AD21-4 ZDS0.2/0.8 |
ZD22-4 ZDS0.2/1.5 |
ZD31-4 ZDS0.4/3 |
ZD32-4 ZDS0.4-4.5 |
|
capacity |
KW |
0.4 |
0.8.0.2/0.8 |
1.5.0.2/1.5 |
0.4/3 |
4.5.0.4/4.5 |
|
|
R.P.M |
R/Mim |
1380 |
1380 |
1380 |
1380 |
1380 |
|
|
Phase number |
|
3 |
3 |
3 |
3 |
3 |
|
|
voltage |
v |
380 |
380 |
380 |
380 |
380 |
|
|
current |
A |
1.25 |
2.4.0.72/2.4 |
4.3.0.72/4.3 |
7.6.1.25/7.6 |
11.2.4/11 |
|
|
frequency |
Hz |
50 |
50 |
50 |
50 |
50 |
|
|
Running motor |
model |
|
ZDY11-4 |
ZDY11-4 |
ZDY11-4 |
ZDY12-4 |
ZDY12-4 |
|
capacity |
kw |
0.2 |
0.2 |
0.2 |
0.4 |
0.4 |
|
|
R.P.M |
r/min |
1400 |
1380 |
1380 |
1380 |
1380 |
|
|
Phrase number |
|
3 |
3 |
3 |
3 |
3 |
|
|
voltage |
v |
380 |
380 |
380 |
380 |
380 |
|
|
current |
A |
0.30 |
0.72 |
4.25 |
1.25 |
2.4 |
|
|
frequency |
Hz |
50 |
50 |
50 |
50 |
50 |
|
|
classification |
M3 |
M3 |
M3 |
M3 |
M3 |
||
|
model |
CD1/MD1 |
|||||
|
capacity |
t |
5 |
10 |
16 |
20 |
|
|
Lifting height |
m |
6|9|12|18|24|30 |
6|9|12|18|24|30 |
9|12|18 |
12 |
|
|
Lifting speed |
m/min |
8(8/0.8) |
7(7/0.7) |
3.5(3.5/0.35) |
5 |
|
|
Running speed |
m/min |
20(30) |
20(30) |
18 |
20 |
|
|
Steel Wire rope |
Rope diameter |
15 |
15 |
17.5 |
17.5 |
11 |
|
Linear diameter |
0.7 |
0.7 |
0.7 |
0.7 |
0.5 |
|
|
Wire rope type |
D-6*37+1 |
D-6*37+1 |
D-6*37+1 |
D-6*37+1 |
||
|
Type of I steel beam(GB706-88) |
16-22b |
25a-45c |
32b-63c |
45a-63c |
||
|
Ring rail minimum radius (m) |
m |
2|2.5|3|4 |
3.5|4|6|7.5|9 |
3.5|4|6 |
|
|
|
Lifting motor
|
model |
ZD41-4 ZDS0.8-7.5 |
ZD51-4 ZDS1.5/13 |
ZD51-4 ZDS1.5/13 |
18.5 |
ZD31-4 ZDS0.4/3 |
|
capacity |
7.5.0.8/7.5 |
13.1.5/13 |
13.1.5/13 |
18.5 |
0.4/3 |
|
|
R.P.M |
1380 |
1380 |
1380 |
1380 |
1380 |
|
|
Phase number |
3 |
3 |
3 |
3 |
3 |
|
|
voltage |
380 |
380 |
380 |
380 |
380 |
|
|
current |
18.2.4/18 |
30.4.3/30 |
30.4.5/30 |
41.7 |
7.6.1.25/7.6 |
|
|
frequency |
50 |
50 |
50 |
50 |
50 |
|
|
Running motor |
model |
ZDY21-4 |
ZDY21-4 |
ZDY21-4 |
ZDY21-4 |
ZDY12-4 |
|
capacity |
0.8 |
0.8*2 |
0.8*2 |
0.8*4 |
0.4 |
|
|
R.P.M |
1380 |
1380 |
1380 |
1380 |
1380 |
|
|
Phrase number |
3 |
3 |
3 |
3 |
3 |
|
|
voltage |
380 |
380 |
380 |
380 |
380 |
|
|
current |
2.4*2 |
2.4*2 |
2.4*2 |
2.4*2 |
1.25 |
|
|
frequency |
50 |
50 |
50 |
50 |
50 |
|
|
classification |
M3 |
M3 |
M3 |
M3 |
||
